DCC-C17 Floor socket box


Short Description:

Double-opening on both sides of the opening mode, No interference at the panel, achieving the level of the connection surface and the ground, More convenient in plugging and extraction.
Download as PDF

DCC-C17 Floor socket box

  • Double-opening type Floor socket box

  • Double-opening on both sides of the opening mode,

  • No interference at the panel, achieving the level of the connection surface and the ground,

  • More convenient in plugging and extraction.

Model

DCC-C18

DCC-C17

Panel Material

Brass alloy

Stainless steel

Surface color

Gold

Silver

Panel size

120×120mm

Cutout

105×105mm

Application

Residential or General Purpose

Type

Floor socket/Countertop socket

Frequency:

50Hz-60Hz

Grounding:

Standard Grounding

Voltage

110-250V

Rated Current:

10-16A/According to different countries

Frame capacity

3 modules

Available modules

Type 128 series

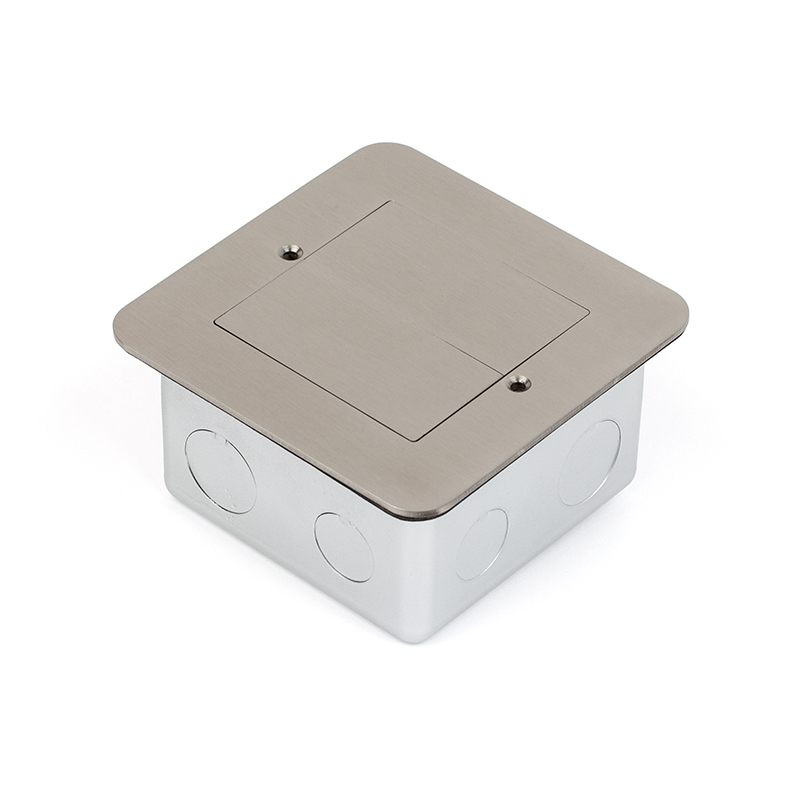

Steel Base Box

100×100×55mm (T100)

Supply complete with Temporary Plastic cover plate for box.
