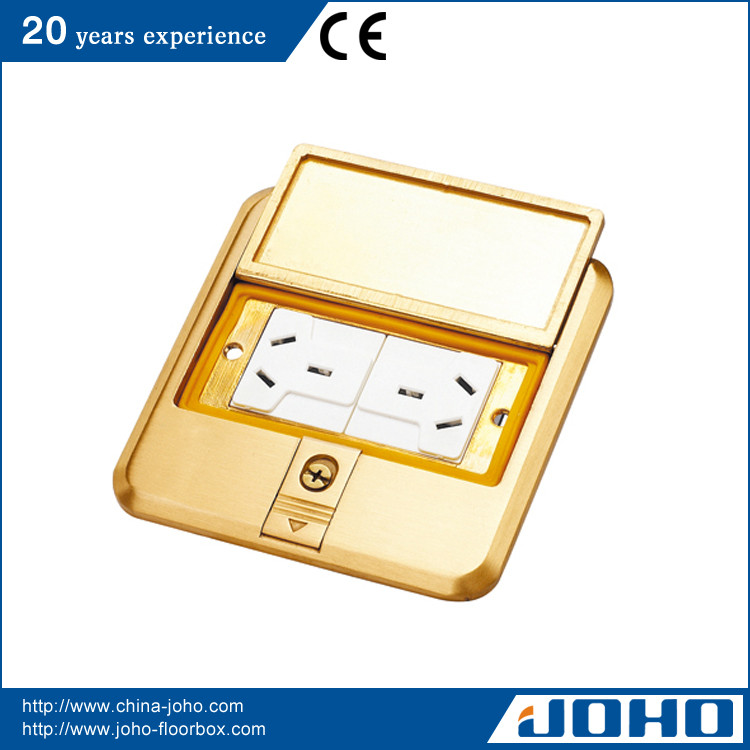

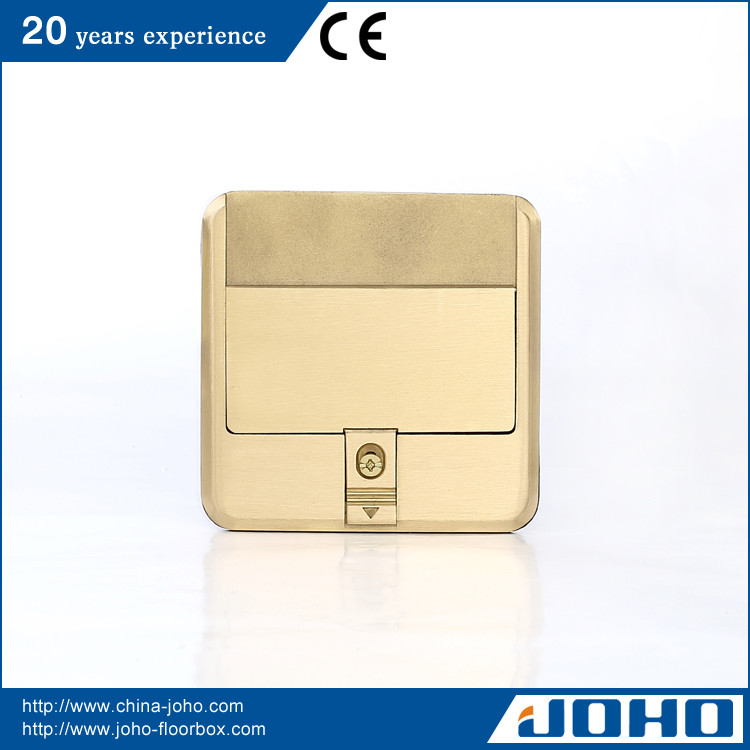

DCK-628/G Square Shape IP66 waterproof Brass Floor Socket

Application Range of square shape waterproof brass floor socket

1. Floors

2. Shop-Fronts

3. Board room tables

4. Kitchen Room tables

5. Ceilings

6. Counters

Features:

1. Waterproof grade: IP66 (when enclosed)

2. Loosen the screw of press sheet, pick the press sheet off and open the upper cover.

3. When it is to be closed, press the upper cover and fasten the screw of press sheet can be for good waterproof performance.

4. Applicable for open-air square or waterproof demanding place.

Parameter:

Panel Dimension: 120*120mm

Panel Material: Brass alloy

Finishing: Wire drawing / Polishing / Spray painting

Interface size: 3 Modules

Frame Material: Zinc Alloy plated Golden color

Base box material: Steel + Zinc plated

Country of Origin: Made in china – Zhejiang province

Available sockets:

Power socket:

Such as USA socket module 15A 125V, 3 pin socket 10A/16A 250V, universal socket 10A 250V, 2 pin socket 10A 250V,

Weak data:

Computer Cat 5E, Cat 6, Telephone, TV, Audio Video ……

USB power 1000mA 5V

118 Type modules

120 Type modules

Junction Box

Temporary lid

Secure to box body during concrete pour to prevent ingress of slurry.

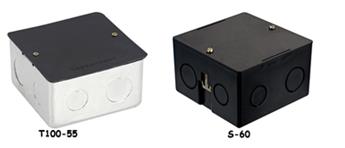

Base box

T100-55 Ga-steel box body: 100*100*55mm

Application: Wooden floor, Ceramic floor, Marble floor, Carpet floor, Concrete floor and so on.

S-60 Plastic box body: 100*100*60mm

Application: Desk.

FAQ:

1. Could I buy 1 piece sample first and small order?

Of course, support sample order and small order, especially for new customers under certain condition.

2. How much for one piece sample?

Some cheap ones may free for 1pcs, but need to see the actual stock.

Some expensive like DCT-638 Double pop up floor box and desktop socket, we will quote you the unit price.

3. If I have my thoughts, do you have person to design according to my concept?

Certainly, our design team is willing to do for you.

4. How long to make a sample?

If with no extra demand, it can be shipped within 1 working day.
