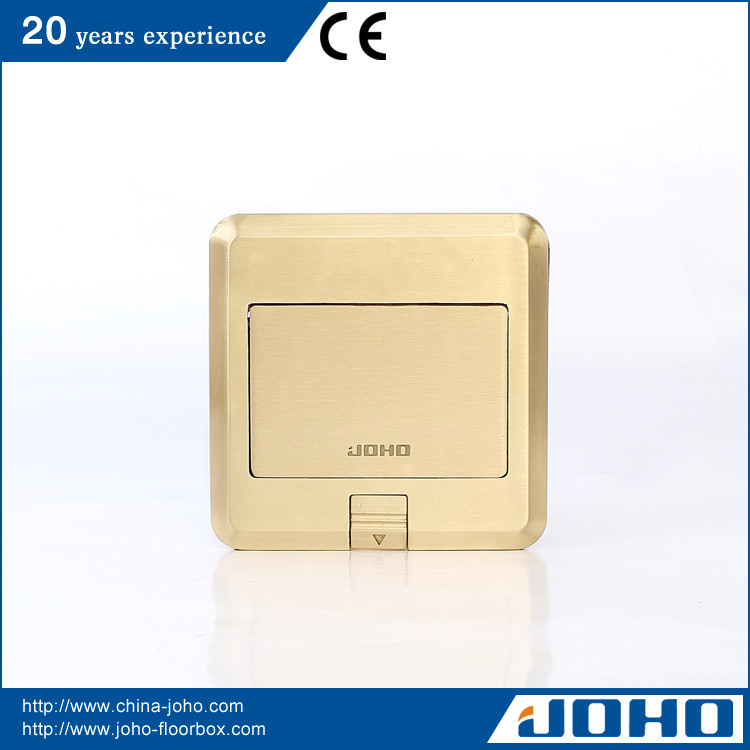

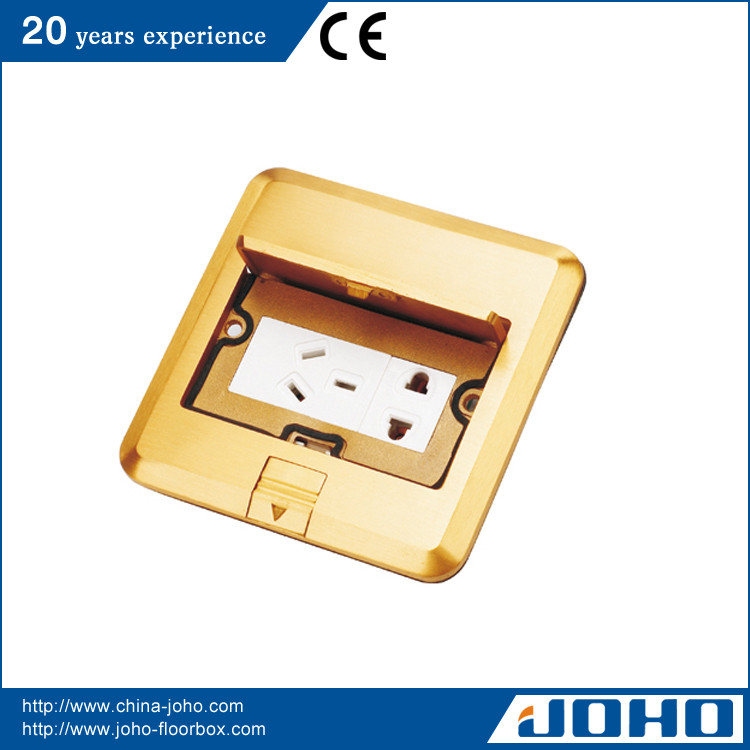

DHM-628/PB Pop cover Type Square Shape Brass Floor Power Socket

Application Range Of Square Shape Brass Floor Power Socket:

1. Floors

2. Shop-Fronts

3. Board room tables

4. Kitchen Room tables

5. Ceilings

6. Counters

Features:

1. Lightly pull out the press sheet, then the upper cover springs and descends into bottom base automatically.

2. 120 series socket module can be equipped.

3. Fixed functional accessories are fit for equipping with module easy to break with light current.

Basic Parameter:

Panel Dimension: 120*120mm

Panel Material: Brass alloy

Finishing: Wire drawing / Polishing / Spray painting

Interface size: 3 Modules

Frame Material: Zinc Alloy plated Golden color

Base box material: Steel + Zinc plated

Country of Origin: Made in china – Zhejiang province

For special requirements & OEM /ODM service, please consult us.

Available sockets:

Power socket:

Such as USA socket module 15A 125V, 3 pin socket 10A/16A 250V, 3 pin universal socket 10A 250V, 2 pin socket 10A 250V,

Weak data:

Computer Cat 5E, Cat 6, Telephone, TV, Audio Video

USB power 1000mA 5V

120 Type modules

Please check all kinds of sockets refer to Product - “Accessories”.

Junction Box

Temporary lid

Secure to box body during concrete pour to prevent ingress of slurry.

Base box for Square Shape Brass Floor Power Socket

T100-55 Ga-steel box body: 100*100*55mm

Application: Wooden floor, Ceramic floor, Marble floor, Carpet floor, Concrete floor and so on.

S-60 Plastic box body: 100*100*60mm

Application: Desk.

FAQ:

1. Could I put my own logo on the floor box?

Sure, customers’ logo can be made by laser or engraved.

2. Should I pay extra for logo printing?

For engraved, when your total ordered quantity is more than 2,000pcs, no need for the extra logo cost. If your quantity is small, you should charge USD350 primary. When your quantity gets 2,000pcs, we will return USD350 back to you.

For laser, normally the floor box is charged USD0.085 for each one.

3. How about the quality of square shape brass floor power socket?

Our professional QC team will inspect the floor box for each one piece.
