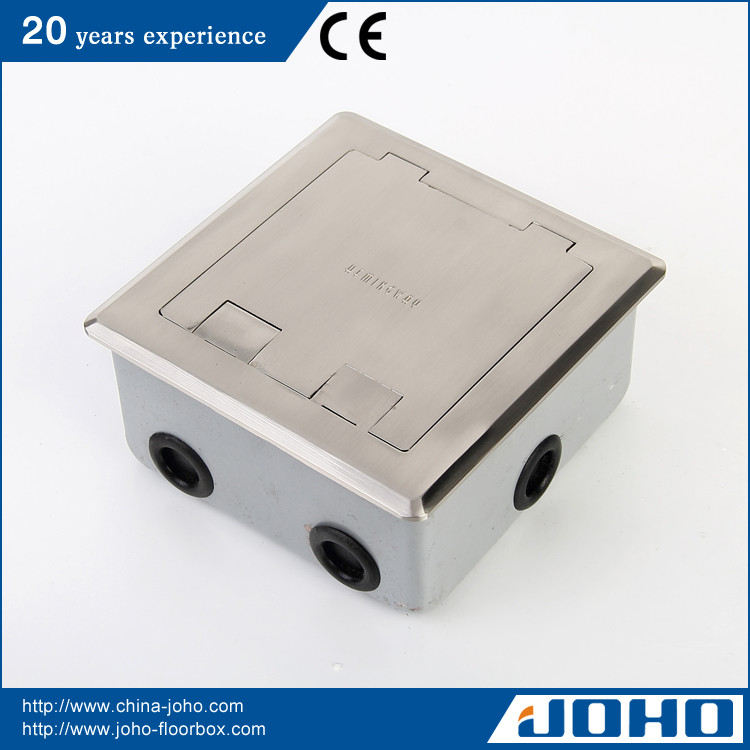

Square Shape Stainless Steel Floor Socket

Short Description:

Panel Dimension: 146*146mm Panel Material: Stainless steel Finishing: Wire drawing / Polishing / Spray painting Interface size: 4 Modules

DCK-146/P Open Type Square Shape Stainless Steel Floor Socket

Features:

1. Compact and stylish, Flush Floor Boxes provide ready access to power and communication outlets recessed in the floor.

2. Suitable for use in: Modern open plan living areas, home theaters, showrooms, shop-front displays, boardroom tables, schools, universities, and public buildings.

3. Square shape stainless steel floor socket available in Brass and Stainless steel, the hard-wearing cover bevels down to a fine edge under foot and is suitable for use with polished floor boards, carpet, ceramic tiles and vinyl floor coverings. (Not suitable for use in wet areas).

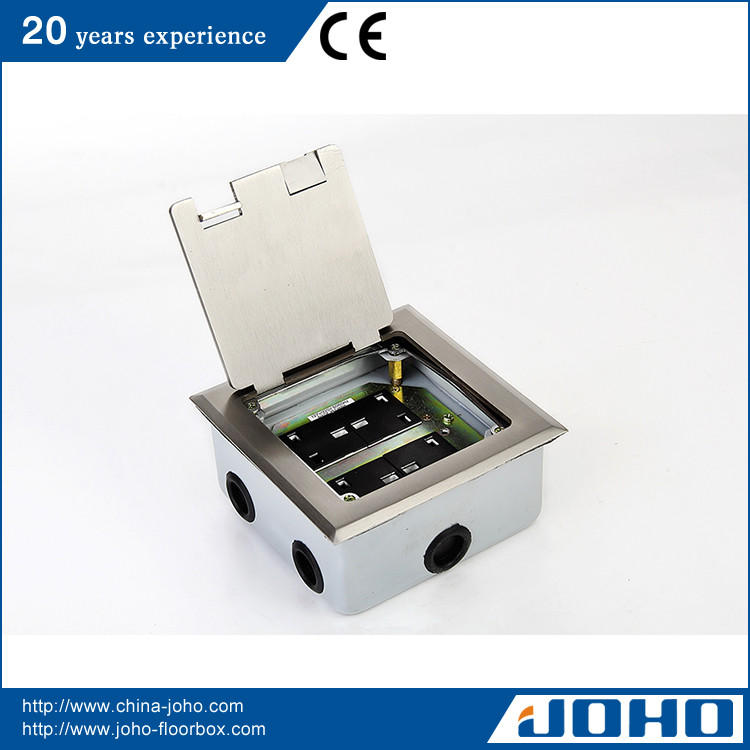

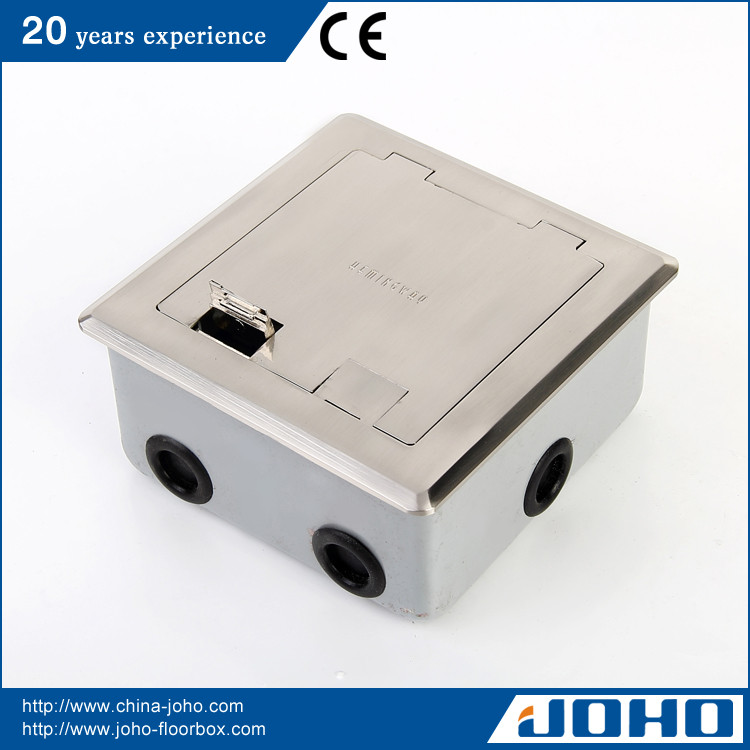

4. Two small flaps allow cords out of the box when in use and close flat when not in use.

5. A versatile, practical and decorative solution to your open plan cabling needs.

Basic Parameter:

Panel Dimension: 146*146mm

Panel Material: Stainless steel

Finishing: Wire drawing / Polishing / Spray painting

Interface size: 4 Modules

Base box material: Steel + Zinc plated

Country of Origin: Made in china – Zhejiang province

For special requirements & OEM /ODM service, please consult us.

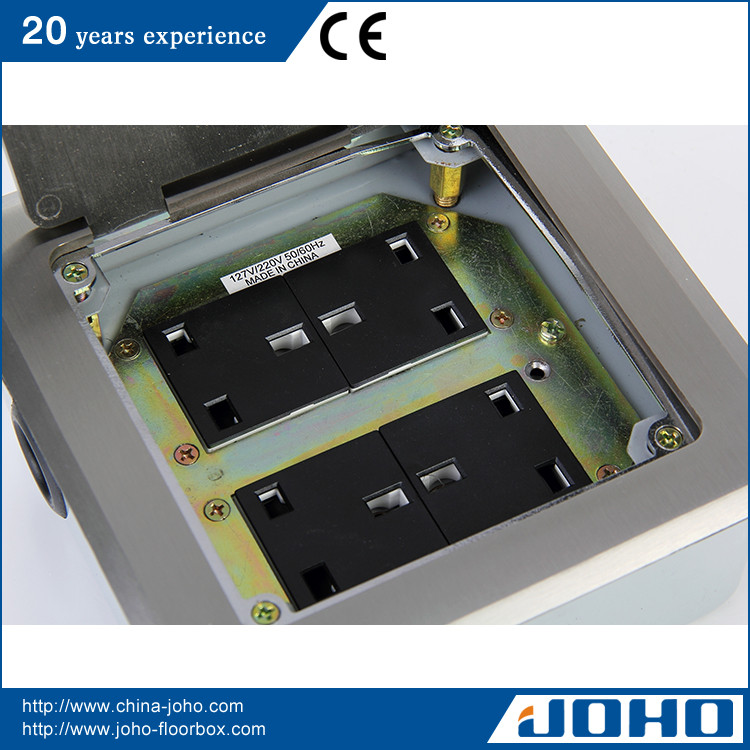

Available sockets:

Power socket:

Such as German outlet 16A 250V AC, French outlet 16A 250V AC, British outlet 13A 250V AC, American outlet15A/20A 125V AC, Australian outlet 10A 250V AC, Universal outlet 10A 250V AC, 2pole outlet 10A 250V AC,

Weak data:

Computer Cat 5E, Cat 6, Telephone, TV, Audio Video ……

USB power 1000mA 5V

Outline Drawing:


F.G. H>30mm can use longer fixing screws.

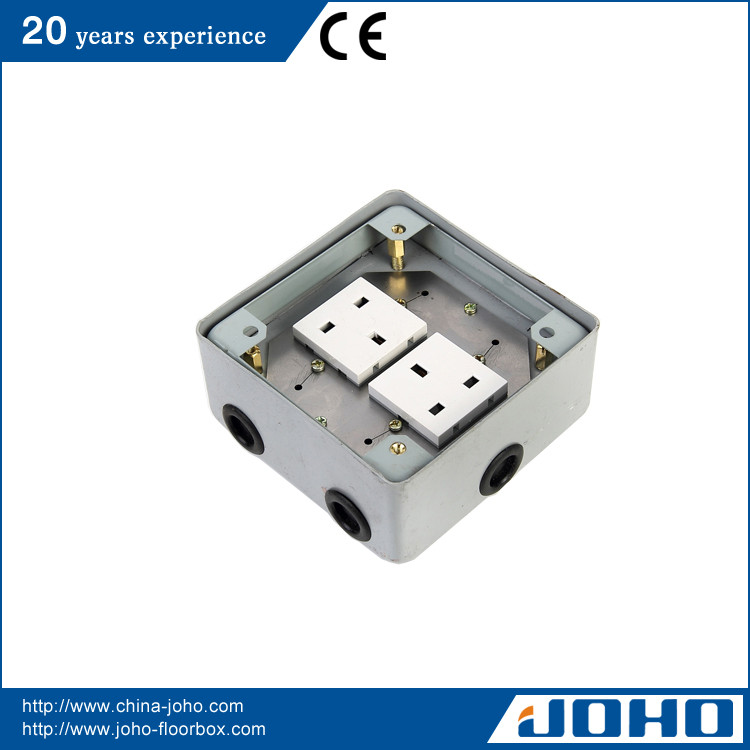

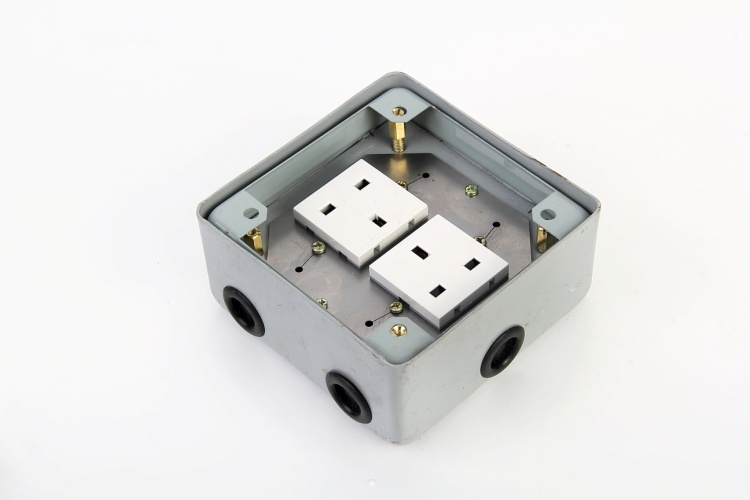

Junction Box


Ga-steel box body: 135*135*65mm

Application: Wooden floor, Ceramic floor, Marble floor, Carpet floor, Concrete floor and so on.

FAQ:

1. Where is your factory located? How can I visit there?

We are located in Yueqing city, Zhejiang province, near Shanghai, Hangzhou and Yiwu. By train, about 4 hours from Shanghai, 3 hours from Hangzhou, and 2 hours from Yiwu. Only 40 minutes drive from the Wenzhou airport.

We can pick you in the Wenzhou airport and the Yueqing port (If by train).

2. What is your MOQ of square shape stainless steel floor socket?

Our MOQ is 100pcs for each one item.

3. Can you do OEM?

Yes, we can do OEM.
