DCK-120 Open Type Floor Socket Box


Short Description:

Compact with the ground after installation, small protrusion. Large capacity of the modules, Simple structure and stable performance.
Download as PDF

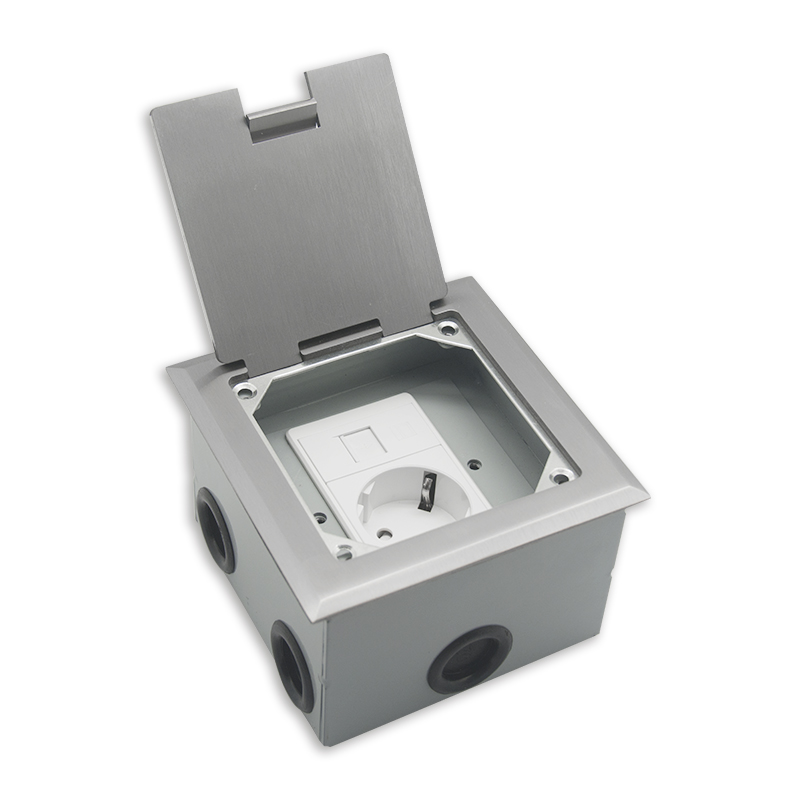

DCK-120 Open Type Floor socket box

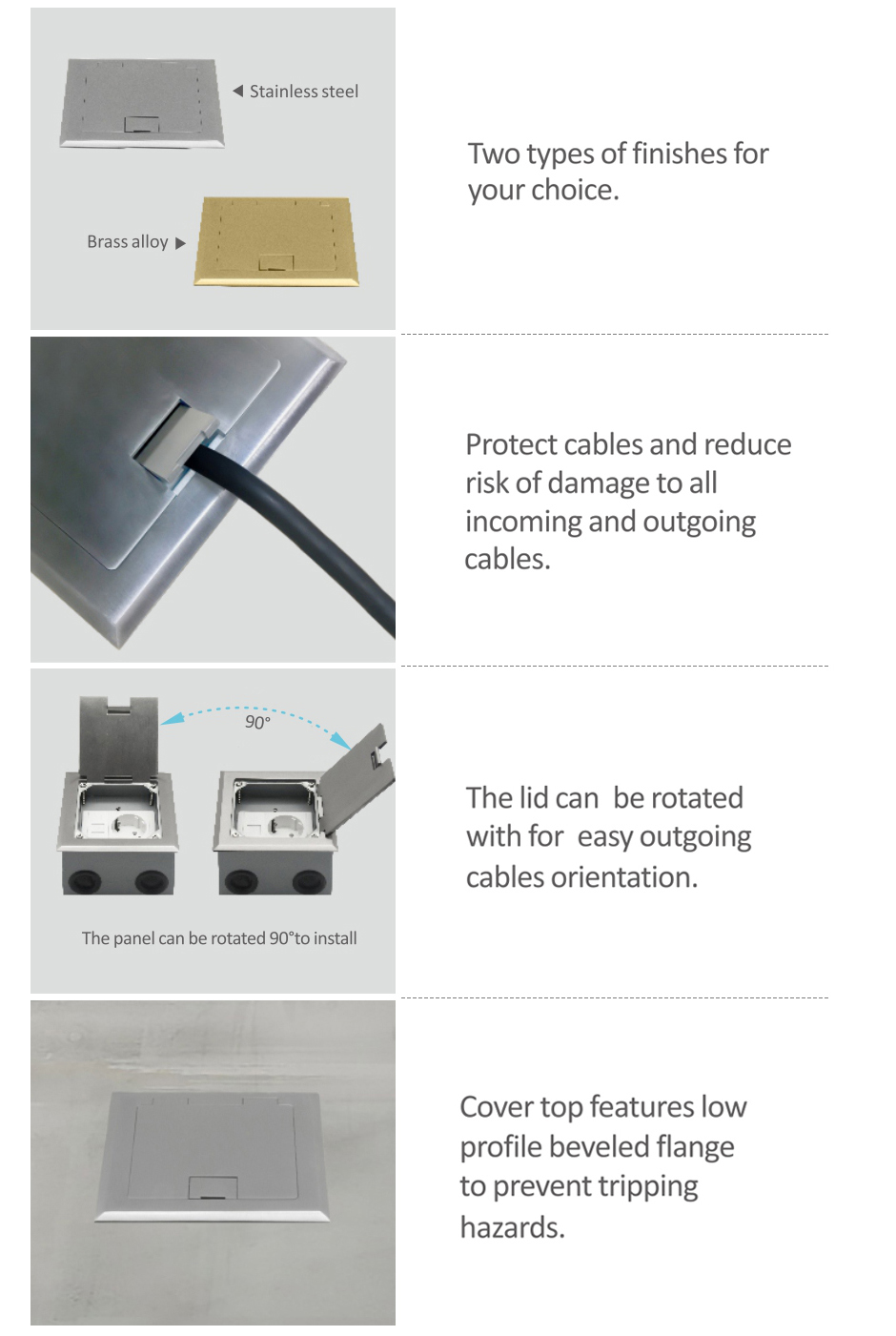

  1. Two types of finishes for your choice.

  2. Protect cables and reduce risk of damage to all incoming and outgoing cables.

  3. Cover top features low profile beveled flange to prevent tripping hazards.


Model

DCK-120/G

DCK-120/P

Panel Material

Brass alloy

Stainless steel

Surface color

Gold

Silver

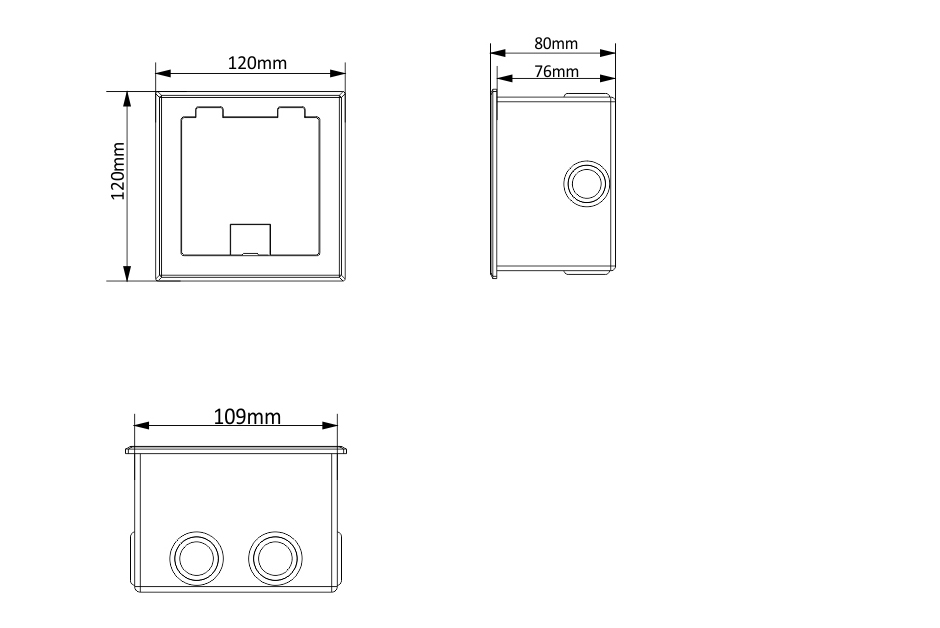

Panel size

120×120mm

Cutout

112×112mm

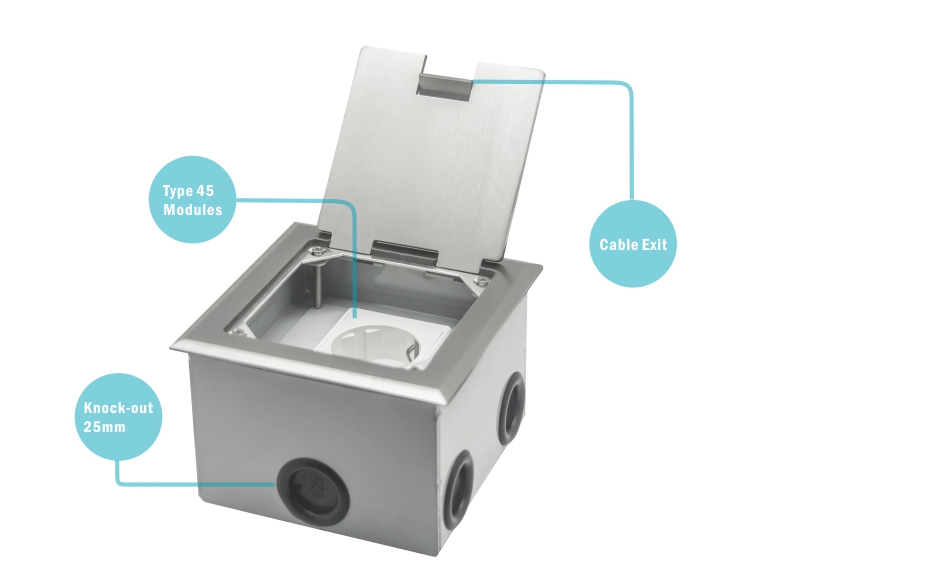

Frame capacity

3 modules

Base Box

Ga-steel box

110×110×65mm

Temporary Lid

Secure to box body during oncrete pour to prevent ingress of slurry.
