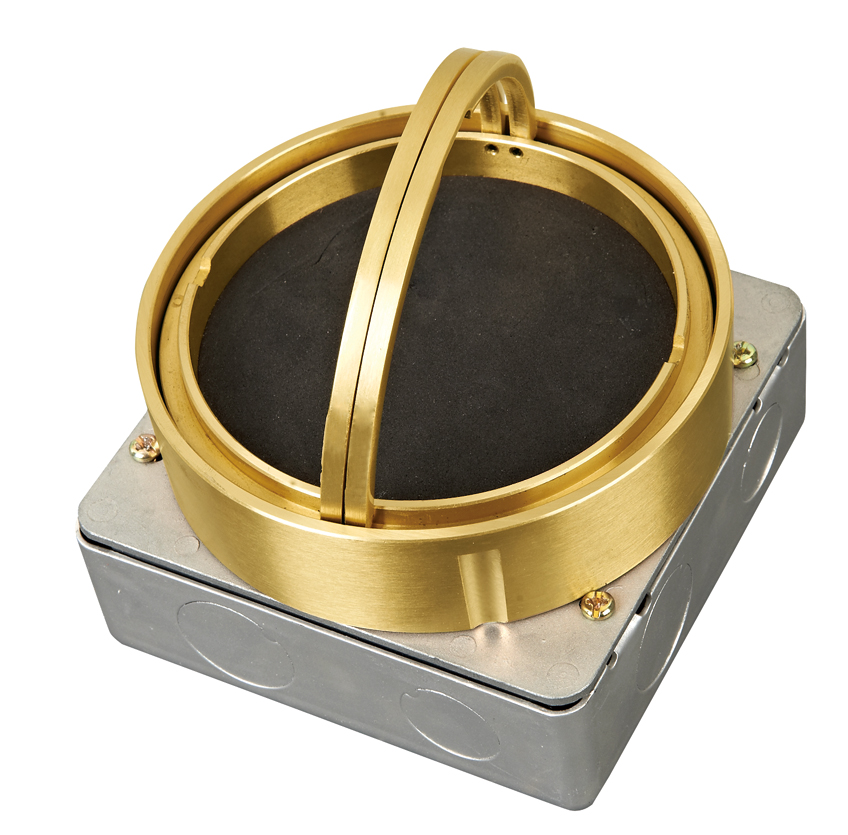

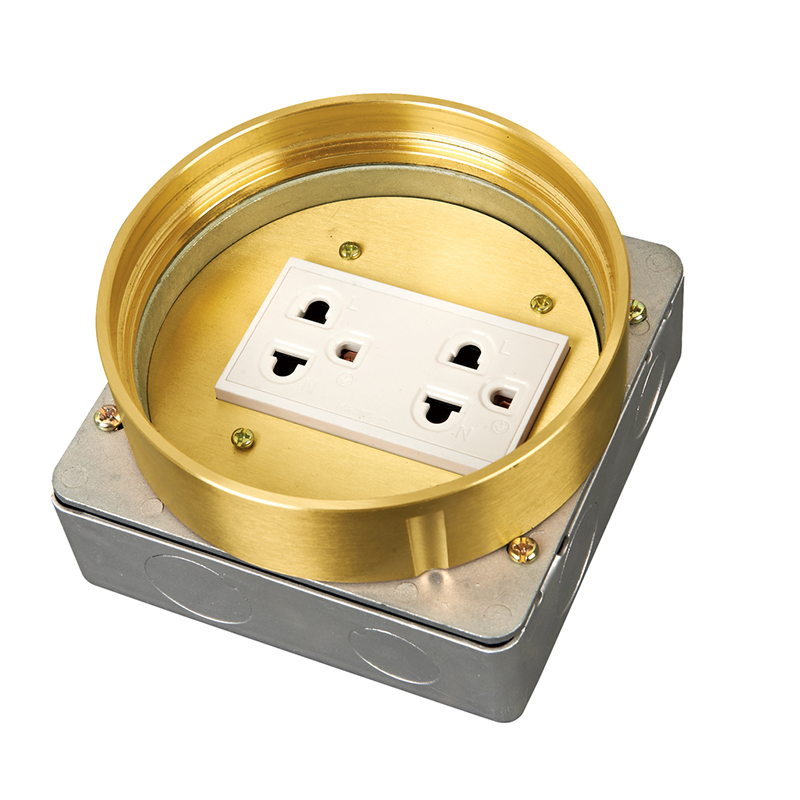

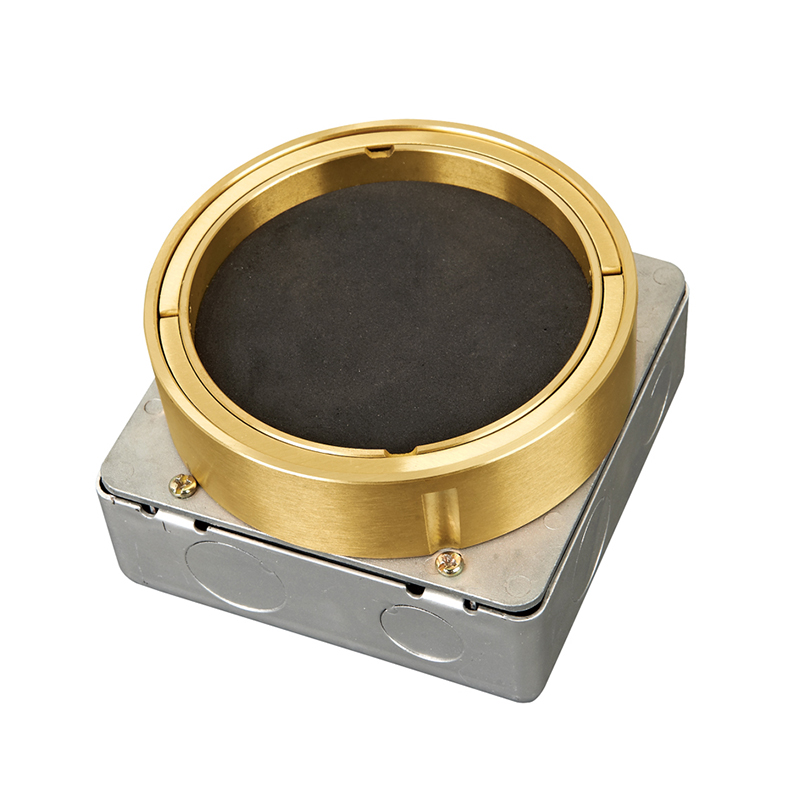

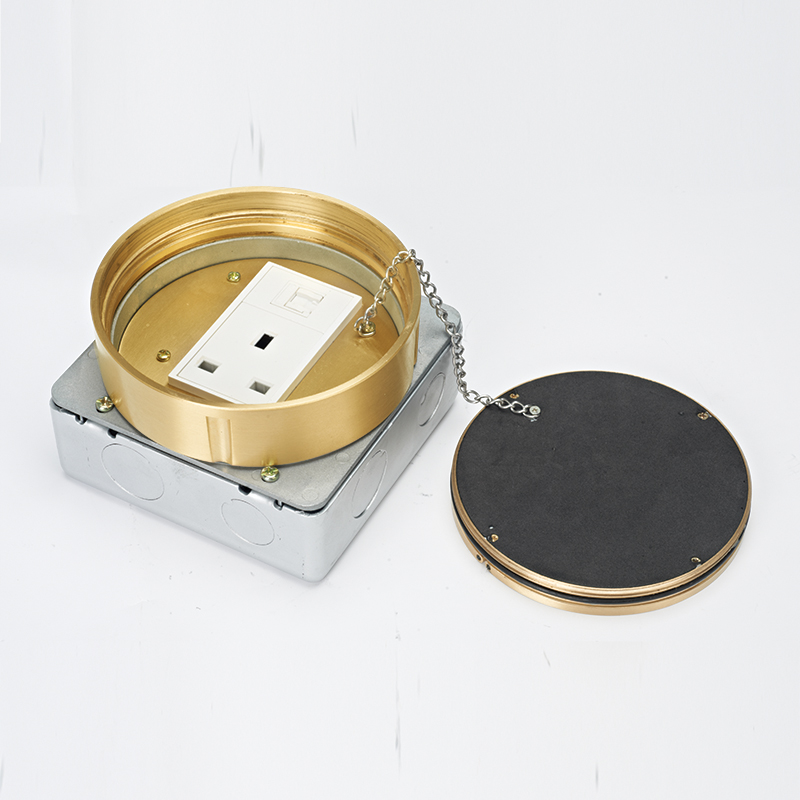

DCX-110/G Waterproof Floor socket box
DCX-110/G Waterproof Floor socket box
IP66 waterproof - strong waterproof performance,
It is made of 304 stainless steel and brass materials, more selective,
It can be fixed with the carpet or marble during installation, achieving zero bulging, horizontal level and strong decorative effect.
Model | DCX-115/G | DCX-115/P |
Open type | Spiral open type | |
IP Grate | IP66 | |
Panel Material | Brass alloy | Stainless steel |
Color | Gold | Silver |
Panel Dia. | 120mm | |

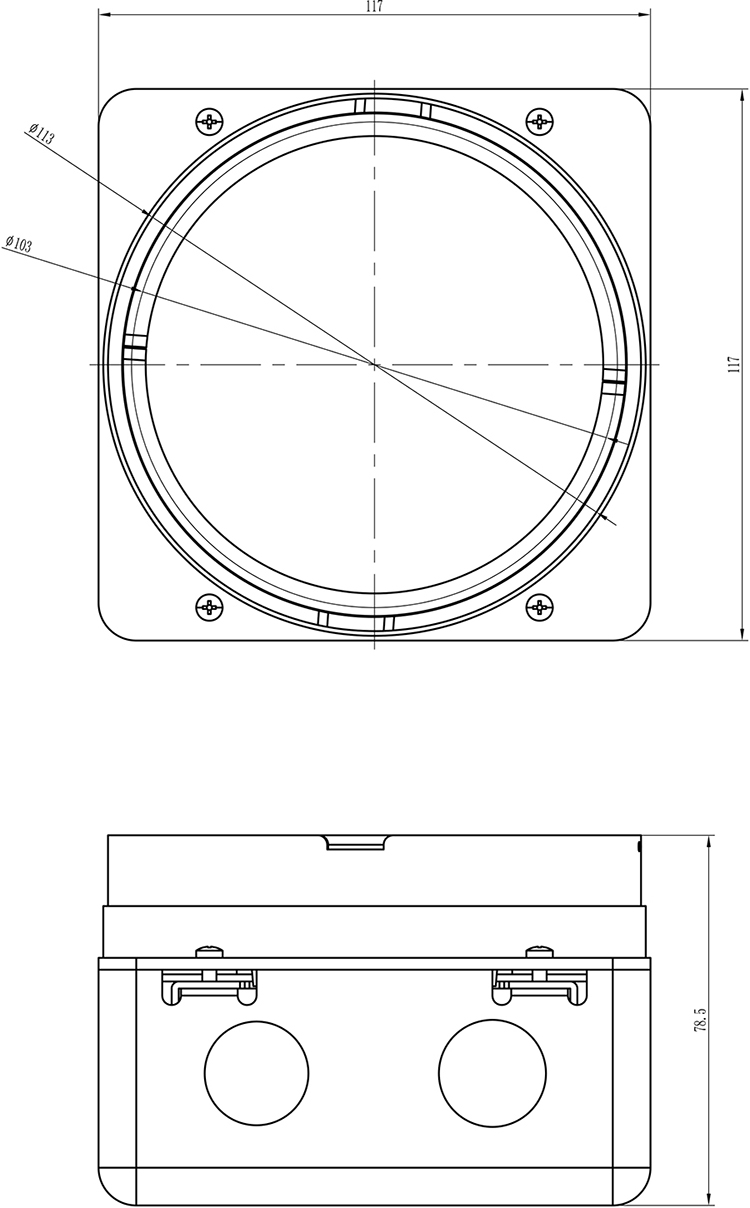

Steel Base Box | 117×117×43mm | |
Cutout | 120×120mm | |
Application | Residential or General Purpose | |
Frequency: | 50Hz-60Hz | |
Grounding: | Standard Grounding | |
Voltage | 110-250V | |
Rated Current: | 10-16A/According to different countries | |
Frame capacity | 3 modules | |
Available modules | Type 118, 120, 128, 45 series | |
