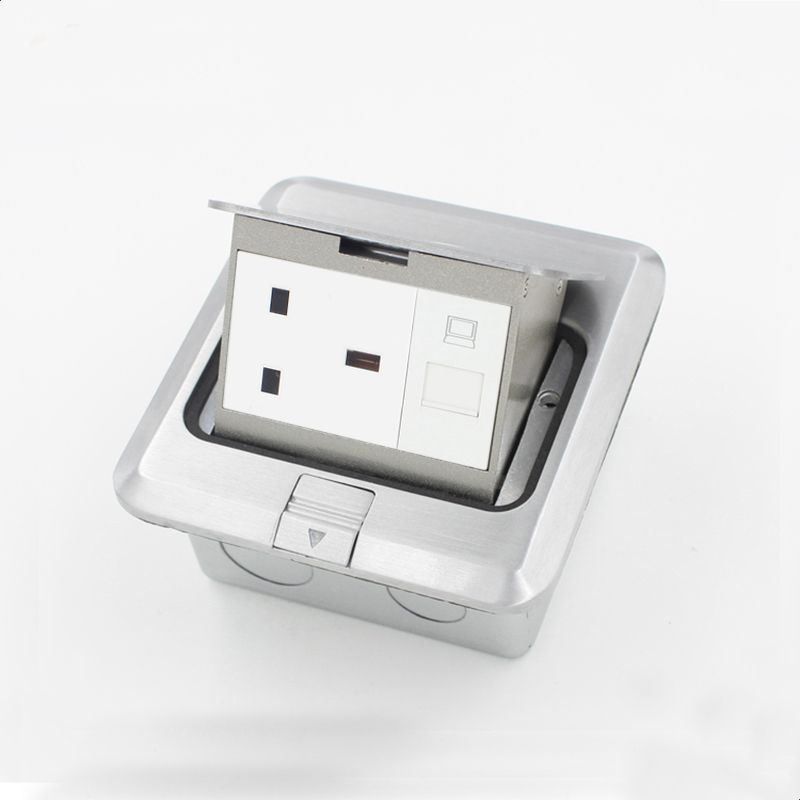

DCT-628/LB

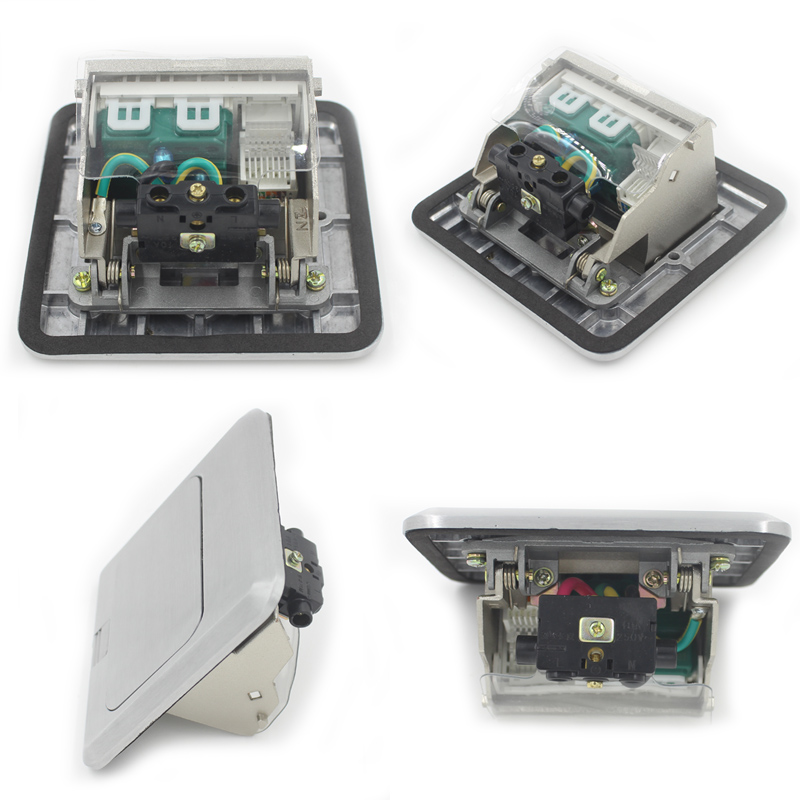

● Pops out from the floor to provide a convenient power outlet.
● When do not needed, can be stored flush with the floor to offer no troublesome hindrance.
● Rubber seal keeps out water and floor wax.
Model | DCT-628/LB | DCT-628/LBD |
Mechanism | Fast pop up | Soft pop up |
Pop-up type | Pull- tab pop up type | |
Panel Material | Aluminum alloy | |
Surface color | Silver | |

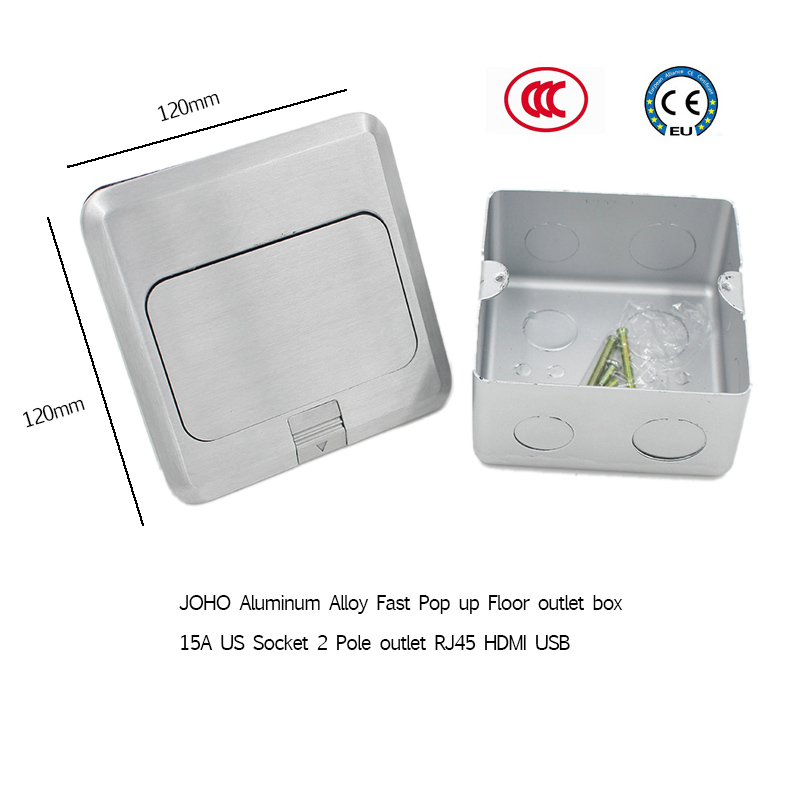

Panel size | 120×120mm | |
Cutout | 105×105mm | |
Application | Residential or General Purpose | |
Type | Floor socket/Countertop socket | |
Frequency: | 50Hz-60Hz | |
Grounding: | Standard Grounding | |
Voltage | 110-250V | |
Rated Current: | 10-16A/According to different countries | |
Frame capacity | 3 modules | |
Available modules | Type 118, 120, 128, 45 series | |
Steel Base Box | 100×100×55mm (T100) Supply complete with Temporary Plastic cover plate for box. | |
· Counters Ceilings
· Kitchen room Tables
· Boardroom Tables
· Shop-Fronts

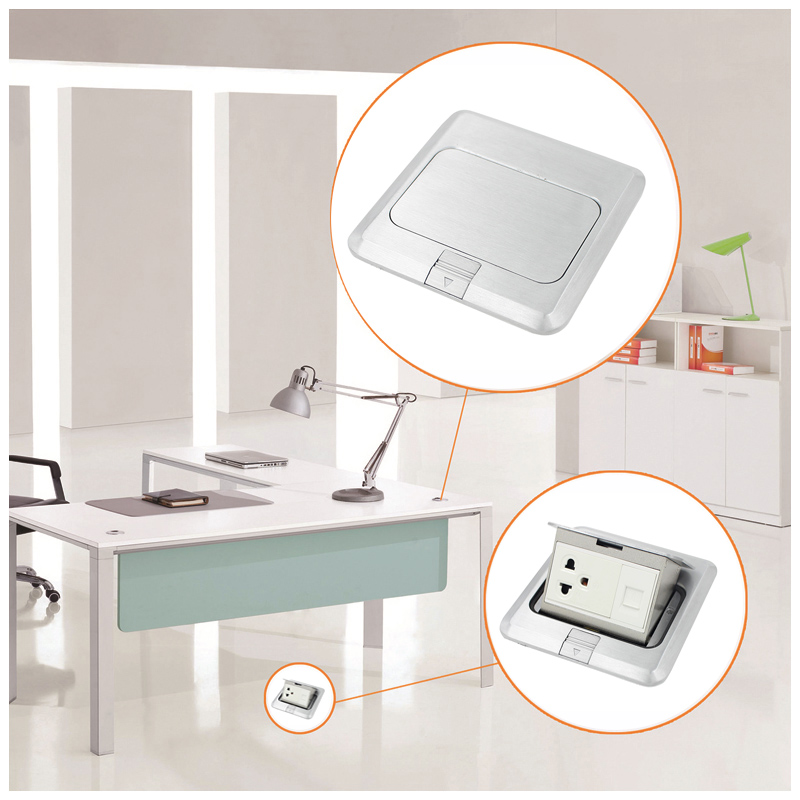

· Desks
· Walls
· Floors
