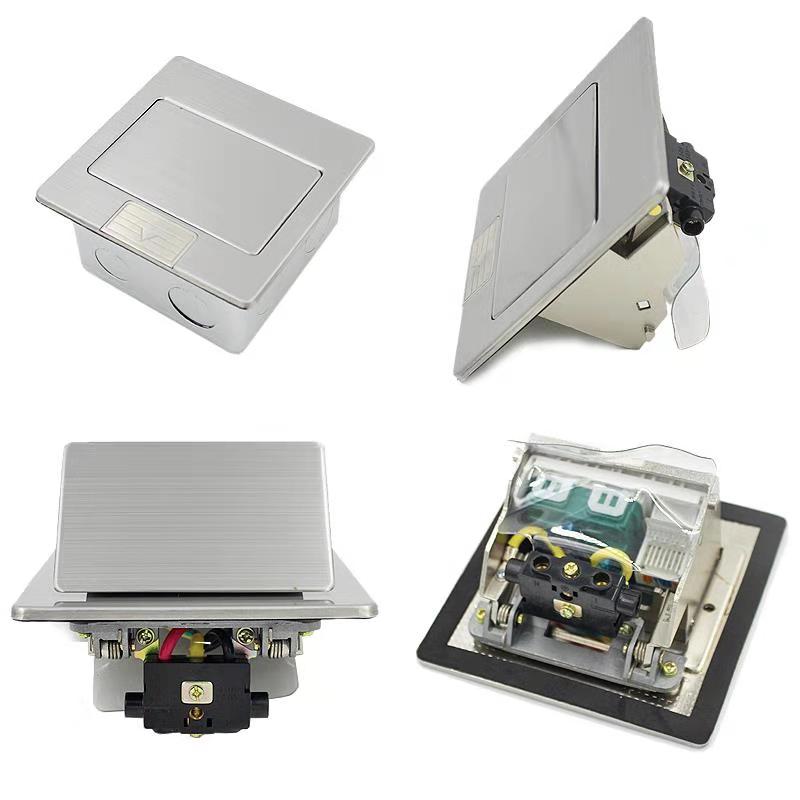

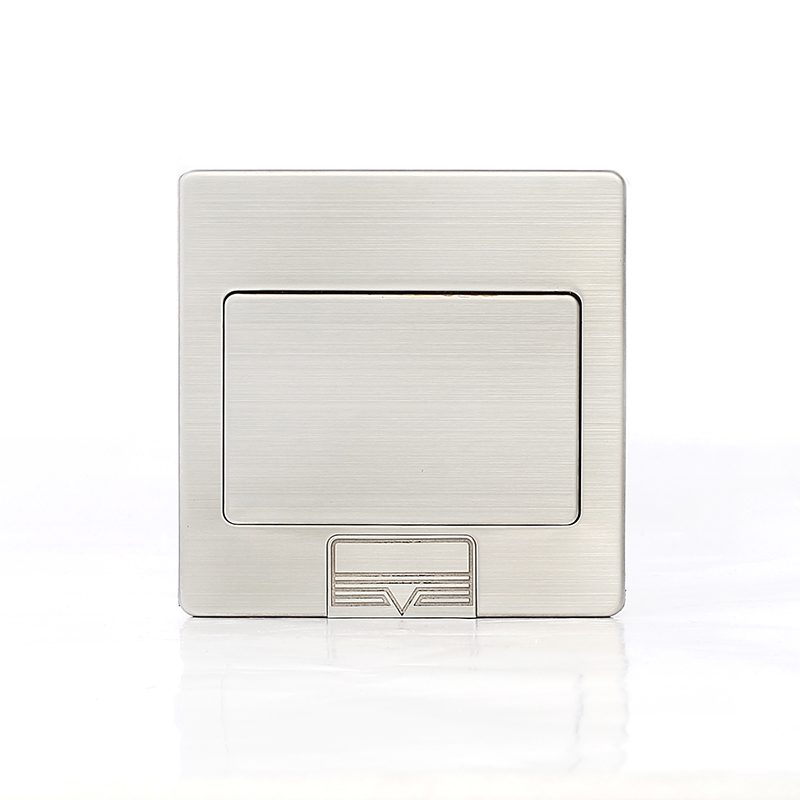

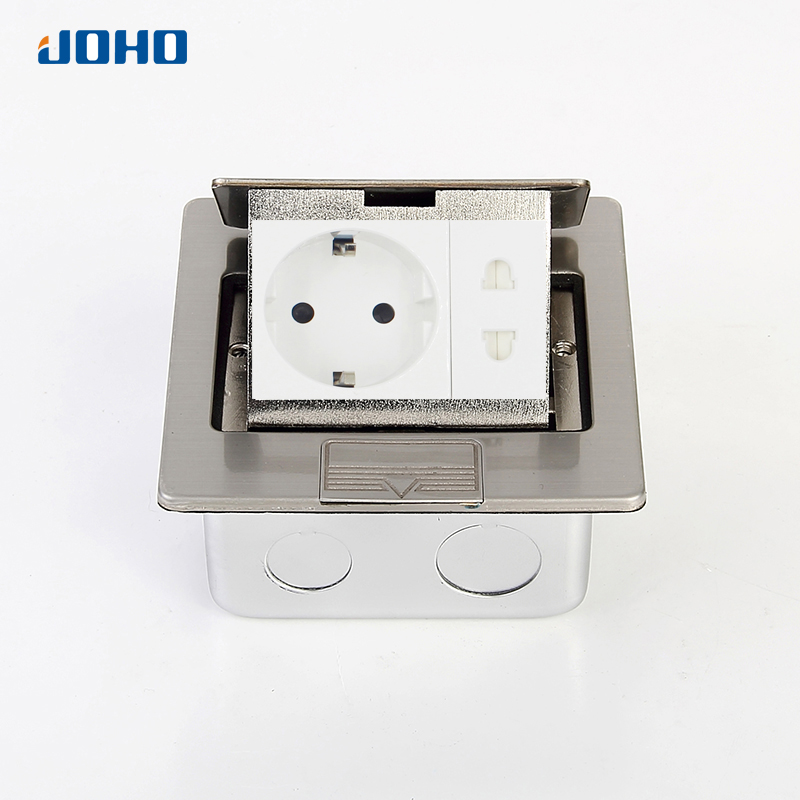

DCT-M28/PB
● Pops out from the floor to provide a convenient power outlet.
● When do not needed, can be stored flush with the floor to offer no troublesome hindrance.
● Rubber seal keeps out water and floor wax.
Model | DCT-M28/PB | DCT-M28/PBD |
Mechanism | Fast pop up | Soft pop up |
Pop-up type | Pull- tab pop up type | |
Panel Material | Stainless steel | |
Surface color | Silver | |
Panel size | 120×120mm | |
Cutout | 105×105mm | |
Application | Residential or General Purpose | |
Type | Floor socket/Countertop socket | |
Frequency | 50Hz-60Hz | |
Grounding | Standard Grounding | |
Voltage | 110-250V | |
Rated Current | 10-16A/According to different countries | |
Frame capacity | 3 modules | |
Available modules | Type 118, 120, 128, 45 series | |

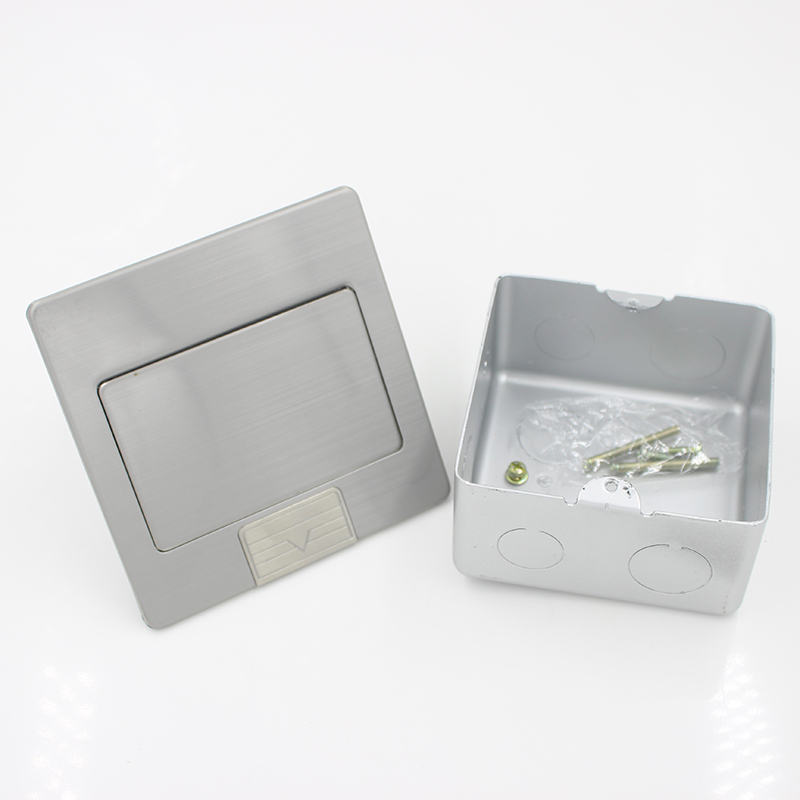

Steel Base Box | 100×100×55mm (T100) Supply complete with Temporary Plastic cover plate for box. | |

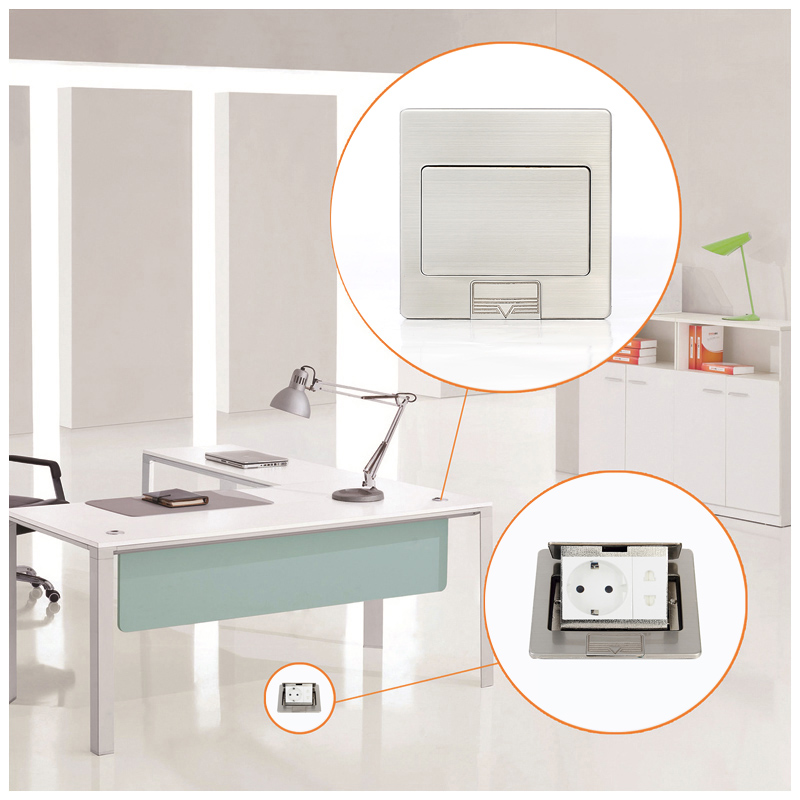

· Counters Ceilings · Kitchen room Tables
· Boardroom Tables · Shop-Fronts
· Desks · Floors
· Walls
