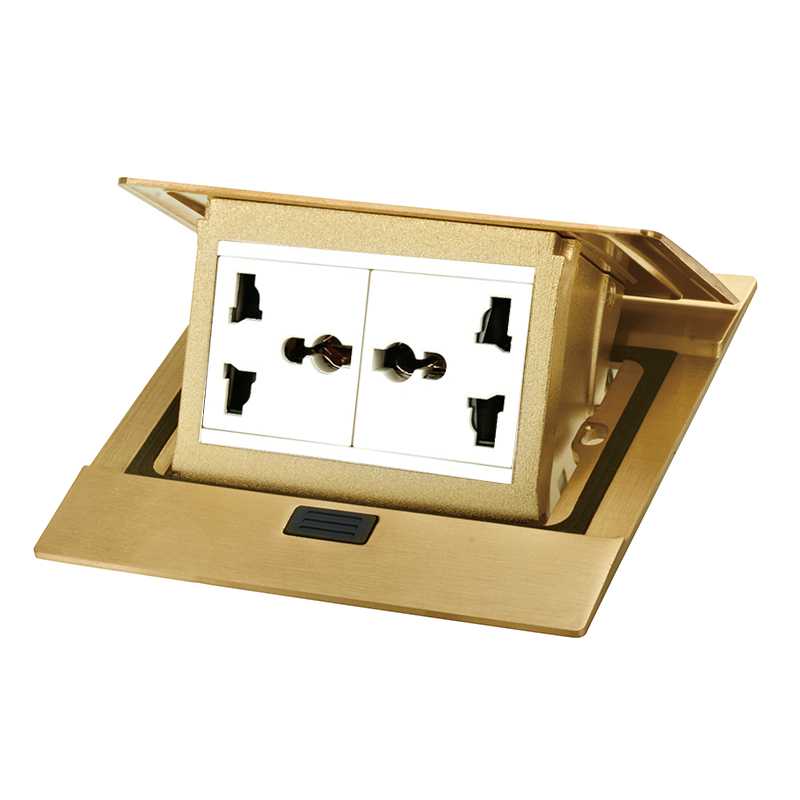

DCT-X29/GA
● Pops out from the floor to provide a convenient power outlet.

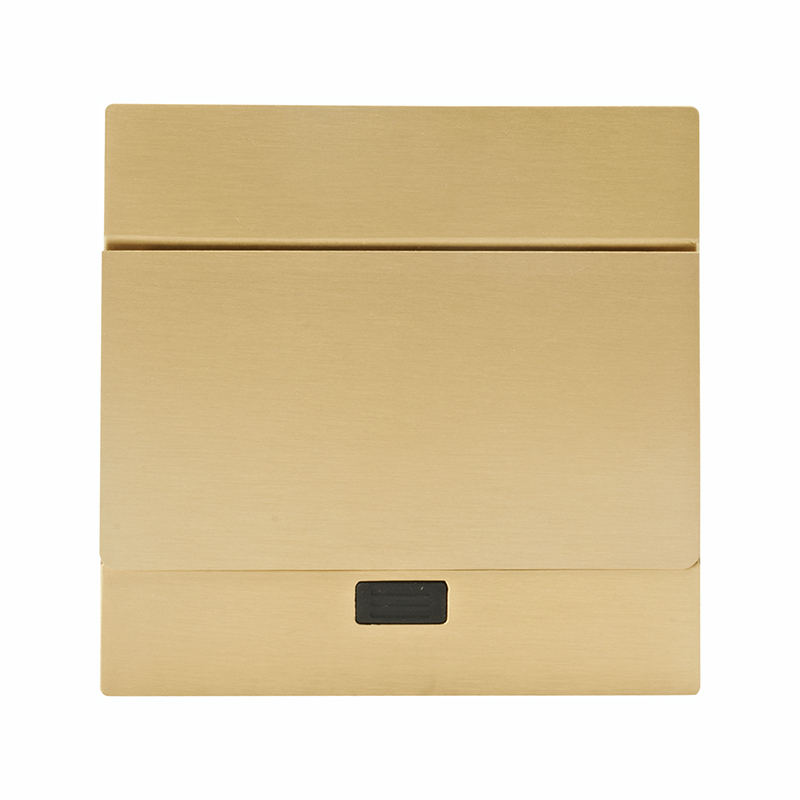

● When do not needed, can be stored flush with the floor to offer no troublesome hindrance.
● Rubber seal keeps out water and floor wax.
Model | DCT-X29/GA |
Mechanism | Soft pop up |
Pop-up type | Vertical push pop up type |
Panel Material | Brass alloy |
Surface color | Golden |
Panel size | 120×120mm |
Cutout | 105×105mm |
Application | Residential or General Purpose |
Type | Floor socket/Countertop socket |
Frequency | 50Hz-60Hz |
Grounding | Standard Grounding |
Voltage | 110-250V |
Rated Current | 10-16A/According to different countries |
Gasket | IP44 |
Frame capacity | 3 modules |
Available modules | Type 118, 120, 128, 45 series |
Steel Base Box | 100×100×55mm (T100) Supply complete with Temporary Plastic cover plate for box. |

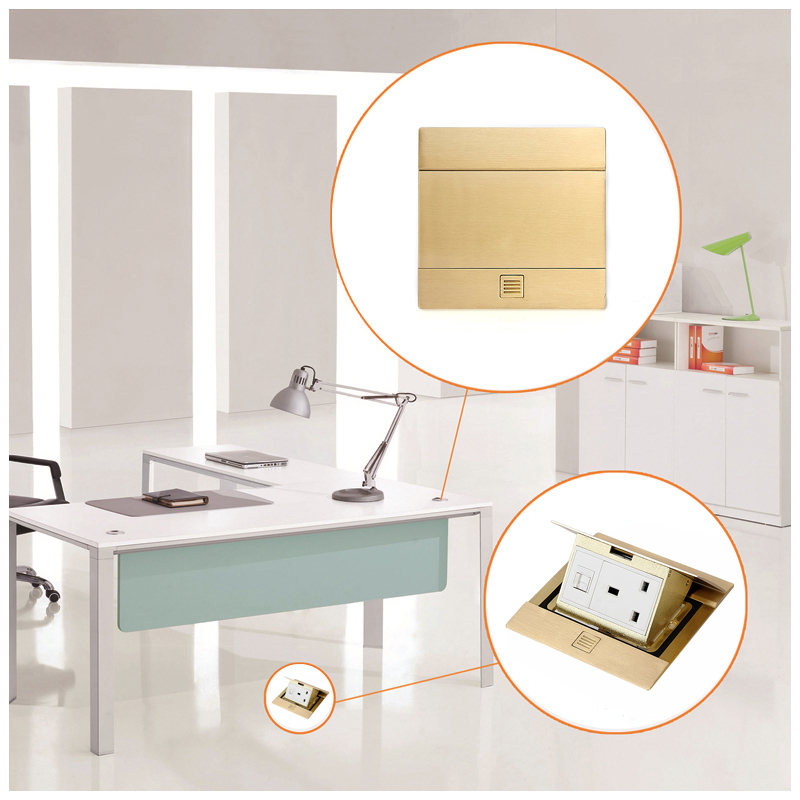

· Counters Ceilings · Kitchen room Tables
· Boardroom Tables · Shop-Fronts
· Desks · Floors
· Walls
