DCK-200/PZ Open Type Floor socket box

Short Description:

Compact with the ground after installation, small protrusion. Large capacity of the modules, Simple structure and stable performance.

DCK-200/PZ Open Type Floor socket box

  1. The unit lies nearly flush with the surface for a discreet and tidy appearance.

  2. 20mm recess adjustment for levelling with the finished floor depth.

  3. Adjustable base box allows to level up the unit with your floor surface in various conditions.

  4. With optimized capacity, the unit can be configured with 12 modules to enable power,

      data and audio visual to be into a common floor box.


Model

DCK-200/PZ

Panel Material

Stainless steel

Surface color

Silver

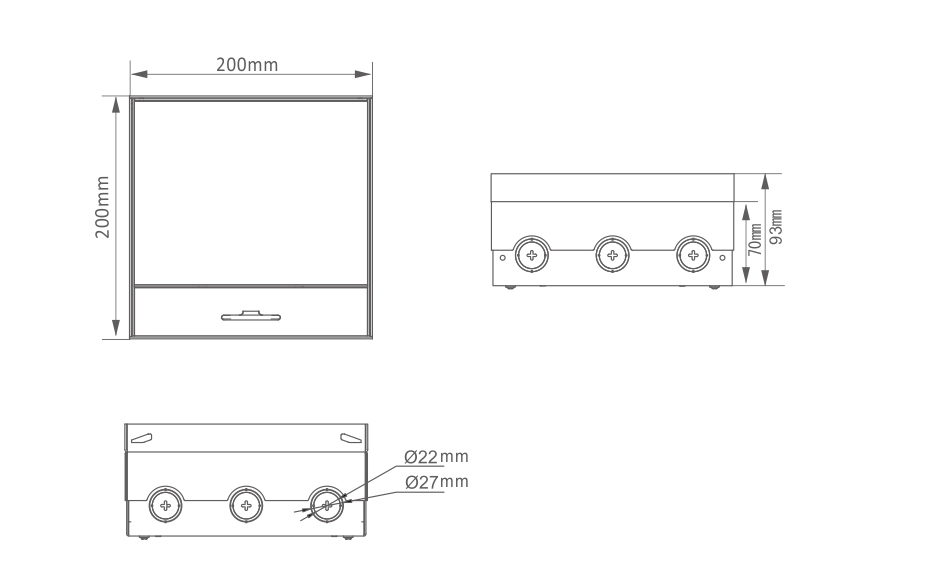

Panel size

200×200mm

Cutout

203×203mm

Frame capacity

12 modules

Application

Concrete floor

Base Box

Ga-steel box

200×200×75mm

Temporary Lid

Secure to box body during oncrete pour to prevent ingress of slurry.
