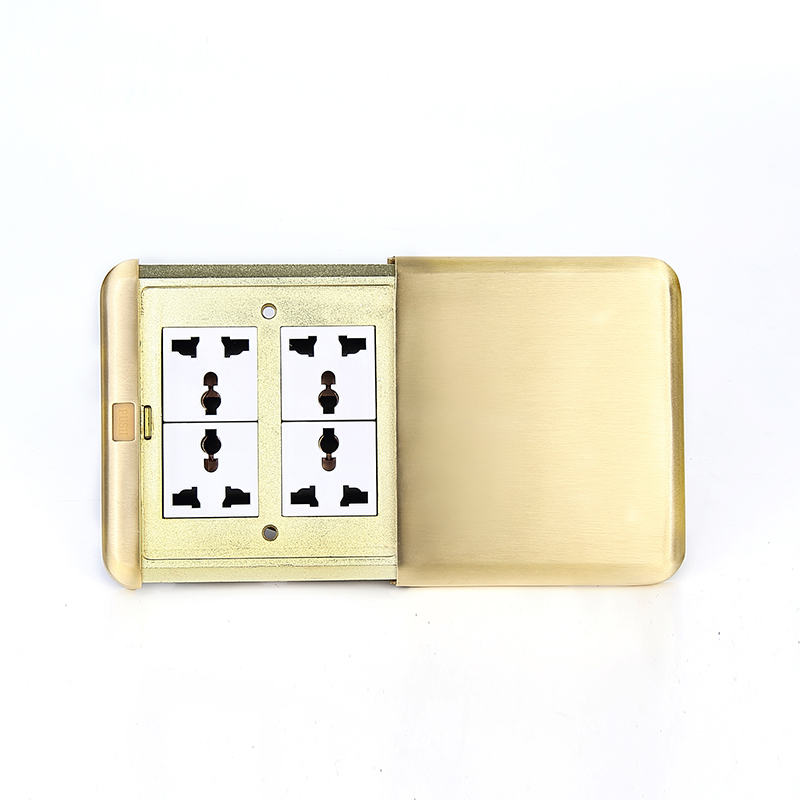

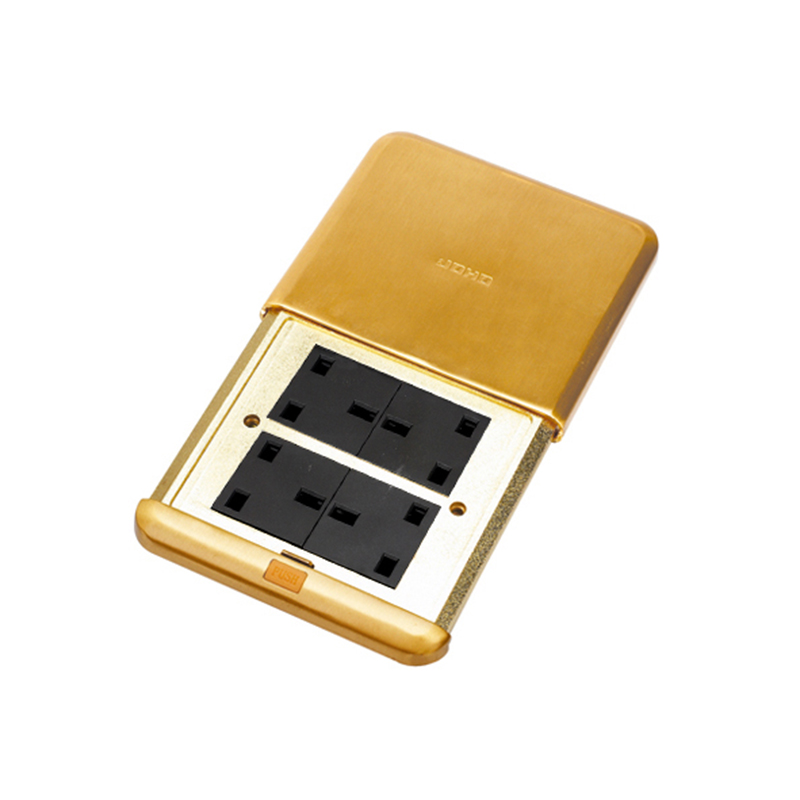

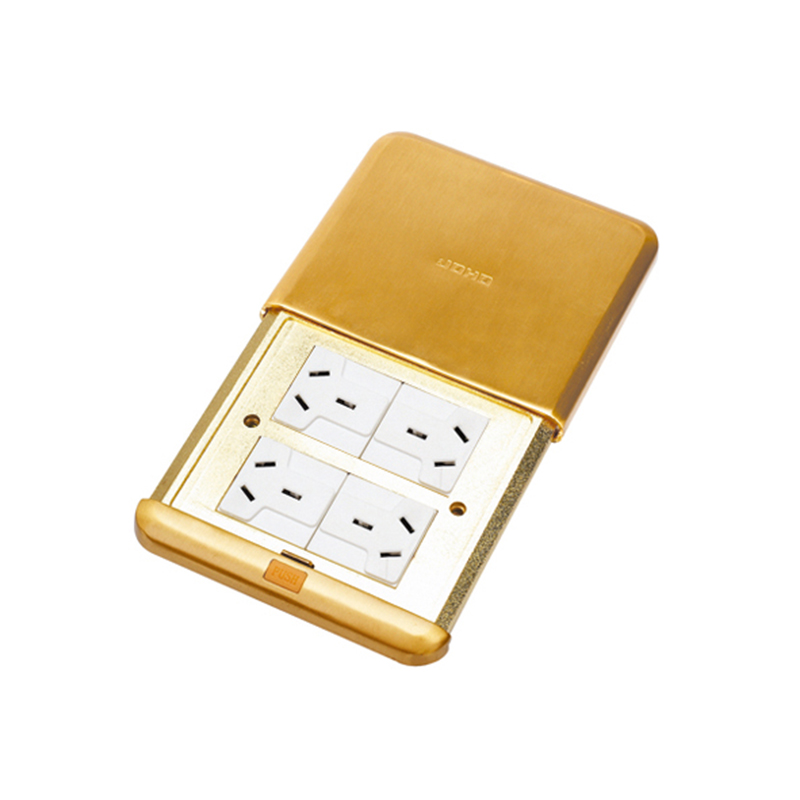

DHM-628/GNU Sliding type Floor socket box
DHM-628/GNU Sliding type Floor socket box
Large capacity of the modules,
The open method is horizontal push-pull, suitable for the table bottom or height-limited ground installation.
Model | DHM-628/GNU | DHM-628/PNU |
Panel Material | Brass alloy | Stainless steel |
Surface color | Gold | Silver |
Panel size | 125×125mm | |
Cutout | 105×105mm | |
Application | Residential or General Purpose | |
Type | Floor socket/Countertop socket | |
Frequency | 50Hz-60Hz | |
Grounding | Standard Grounding | |
Voltage | 110-250V | |
Rated Current | 10-16A/According to different countries | |
Frame capacity | 4 modules | |
Available modules | Type 118 series | |
Steel Base Box | 100×100×55mm (T100) Supply complete with Temporary Plastic cover plate for box. | |
