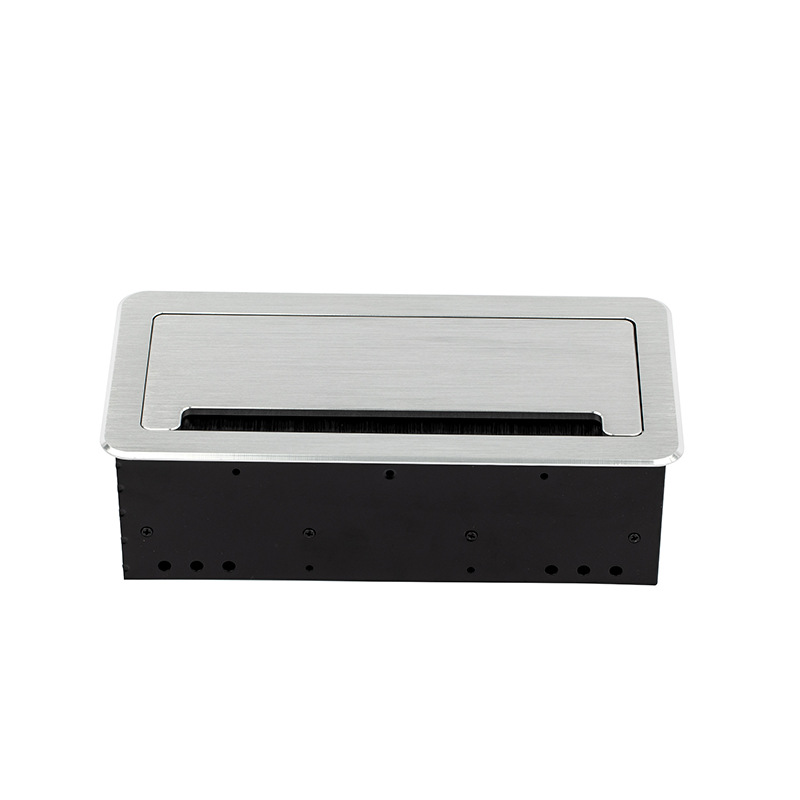

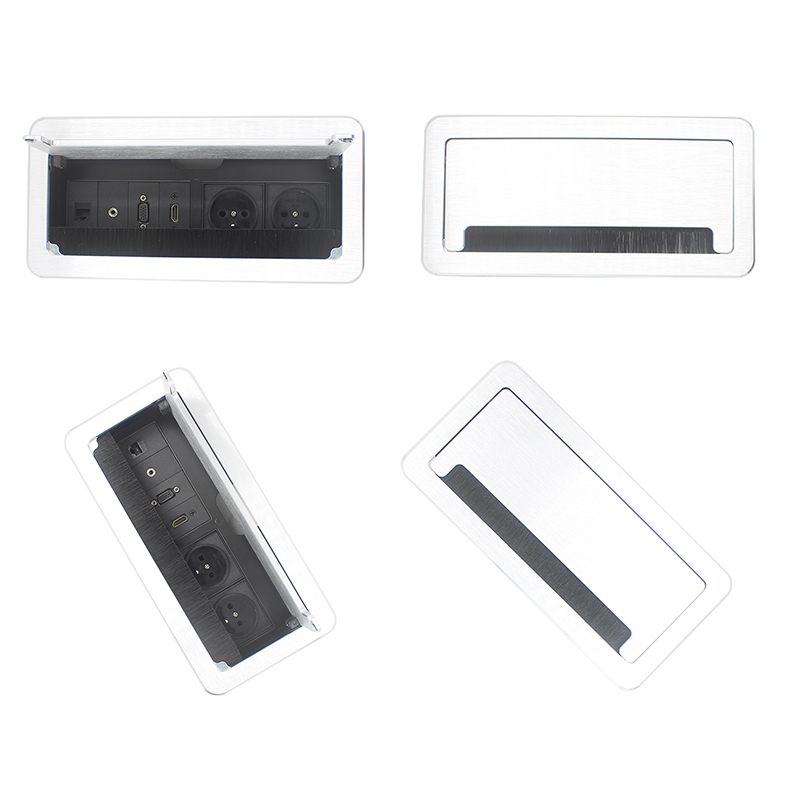

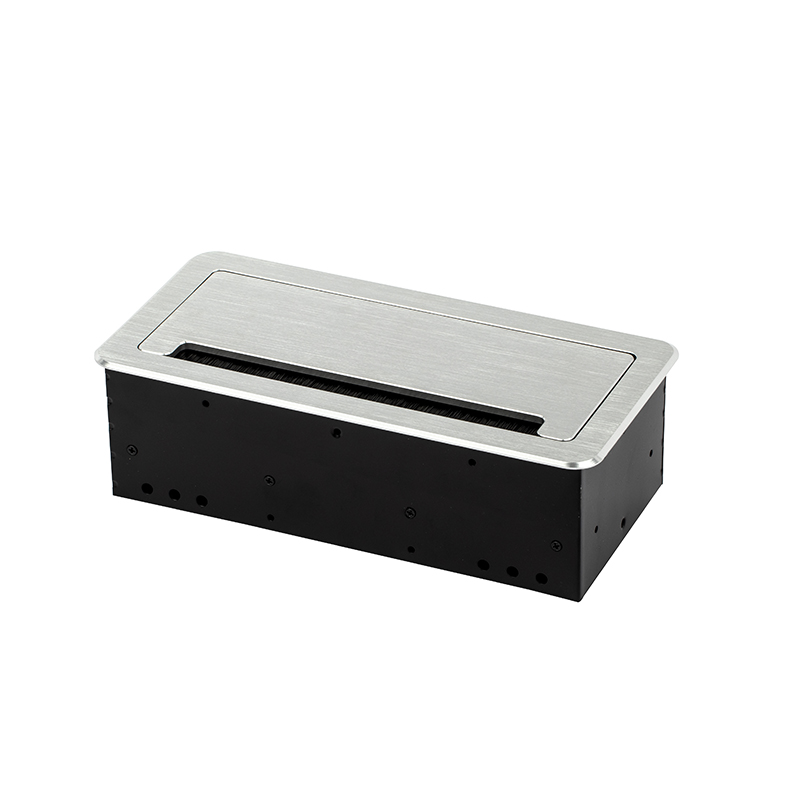

BS-102/S Brush type Tabletop socket
BS-102/S Brush type Tabletop socket
Product panel the big gap setting, convenient line, when using part of the internal jumpers, jump line qualification from the gap, the cover plate can still closed. Socket box body with a brush, shade big gap, socket whole appear more upscale.

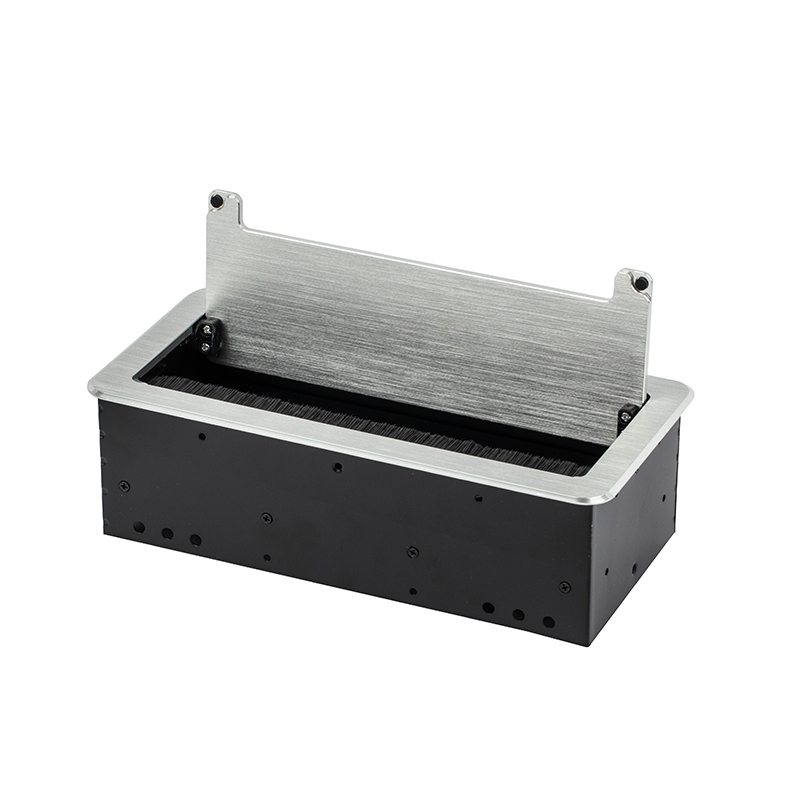

1. 45-degree flip design, equipped with high-end damping gas spring, smooth, elegant flip;
2. Surface is high-grade scratch-resistant, bottom panel on the configuration corresponding to the modules, no soldering required.
3. With dustproof surface, available in brushed black / silver finish.
4. Modules can be free combined.
Model | BS-102/BK | BS-102/S |
Surface color | Black | Silver |
Panel Material | Aluminum alloy | |
Box Material | Steel | |
Panel size | 266×130mm | |
Box Size | 254×116mm | |
Height | 78mm | |
Cutout | 257×120mm | |
Frequency | 50Hz-60Hz | |
Grounding | Standard Grounding | |
Voltage | 110-250V | |
Rated Current | 10-16A/According to different countries | |
Frame capacity | 8 modules |
