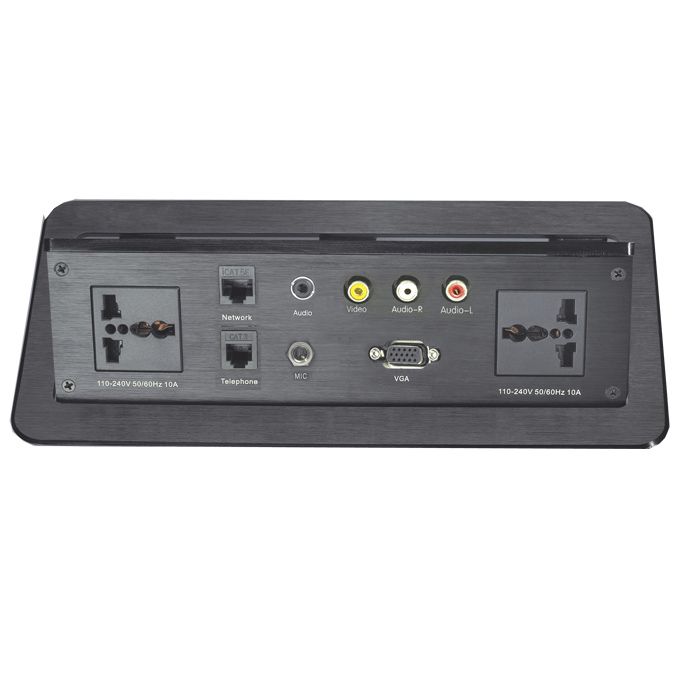

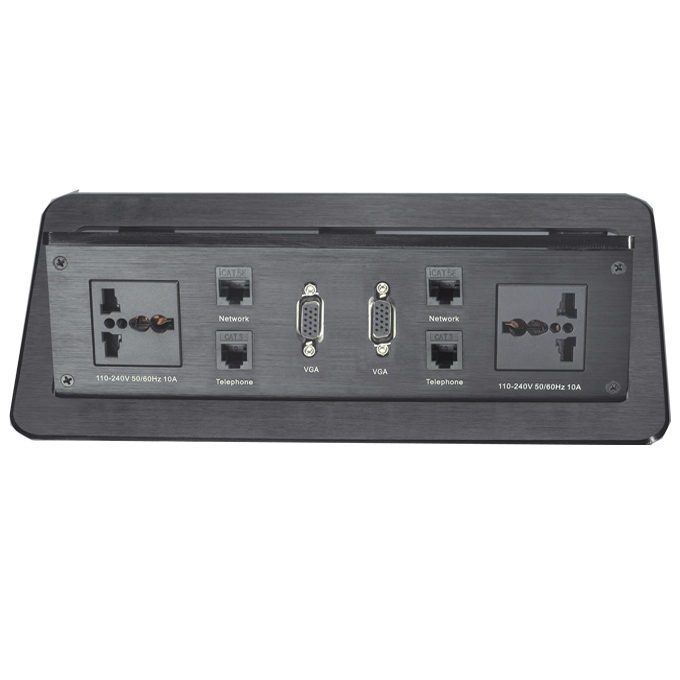

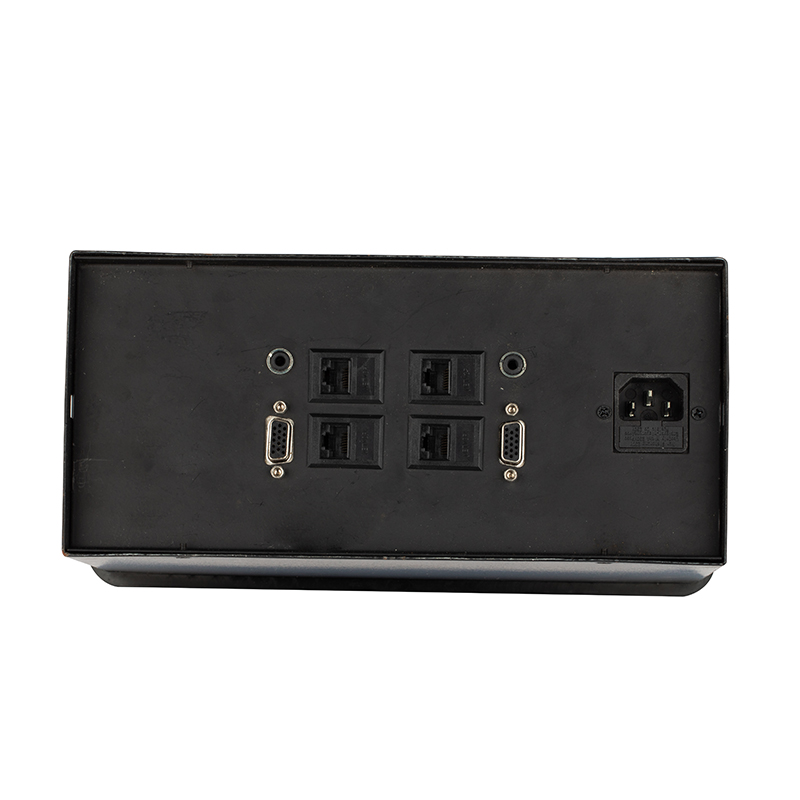

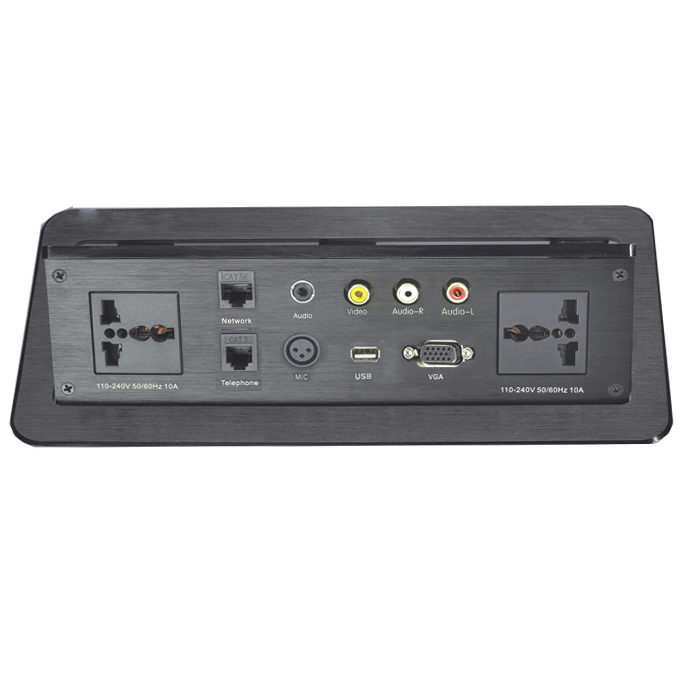

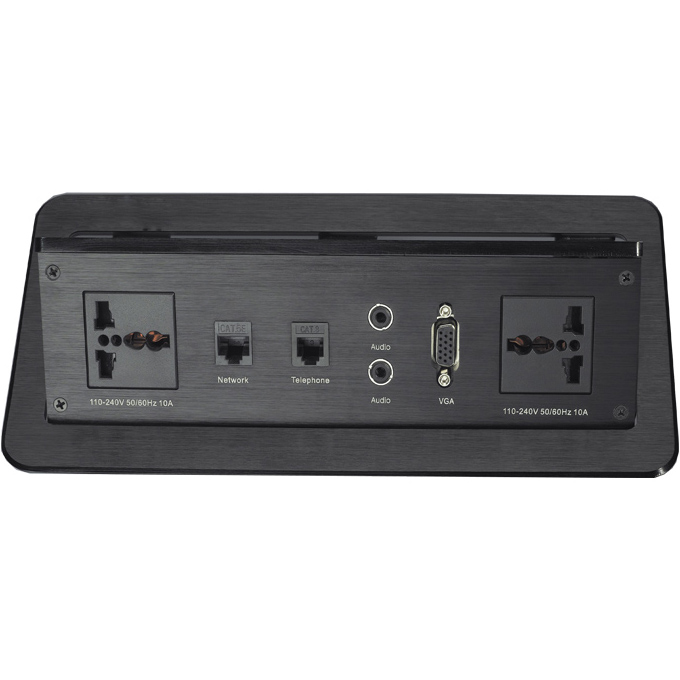

P-266A Press type Tabletop socket

Short Description:

Press to reveal or hide all the modules. When closed, the hidden tabletop socket flushes with the desktop.

P-266A Press type Tabletop socket

When using just light socket at the top of the panel, release mechanism trunk lock, the socket panel open by pneumatic rod device. After using, light to close the trunk lock, press the socket panel on the front panel of each function module interfaces with hidden, closing the socket after maintain flush with the desktop.

1.   Press to reveal or hide all the modules.

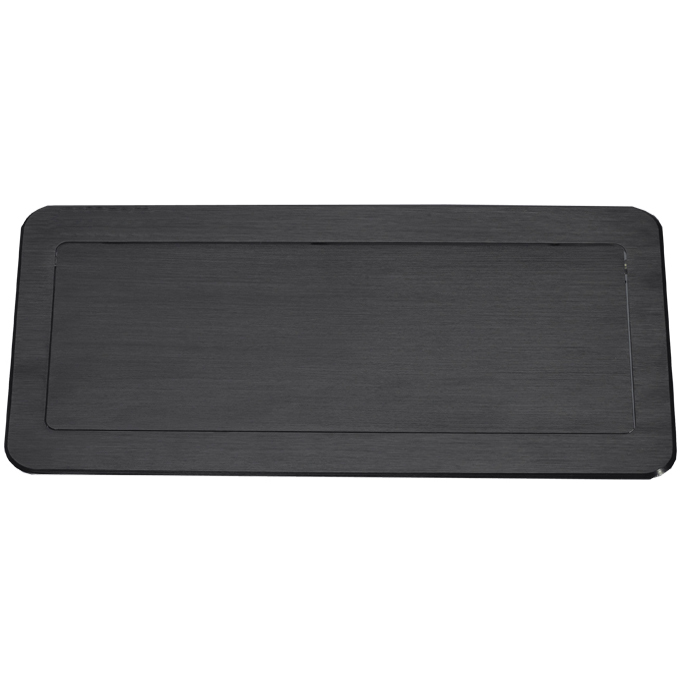

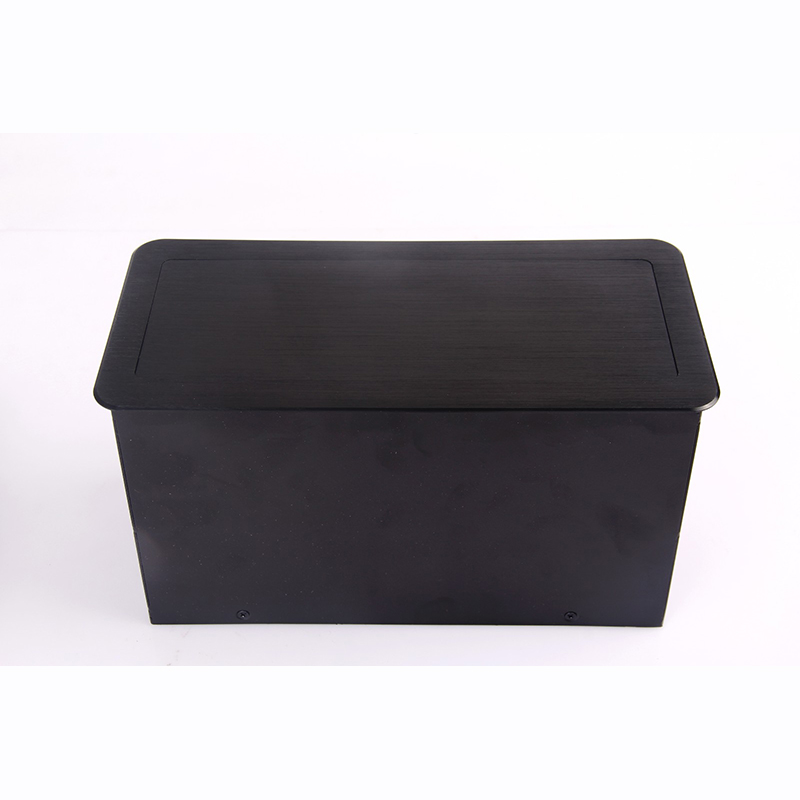

2.   When closed, the hidden tabletop socket flushes with the desktop.

3.   Available in black / silver finish.

4.   Modules can be free combined.

Model

P-266/BK

P-266/S

Surface color

Black

Silver

Panel Material

Aluminum alloy

Box Material

Steel

Panel size

266×130mm

Height

148mm

Cutout

258×122mm

Frequency

50Hz-60Hz

Grounding

Standard Grounding

Voltage

110-250V

Rated Current

10-16A/According to different countries
