P-266B Press type Tabletop socket
P-266 Press type Tabletop socket

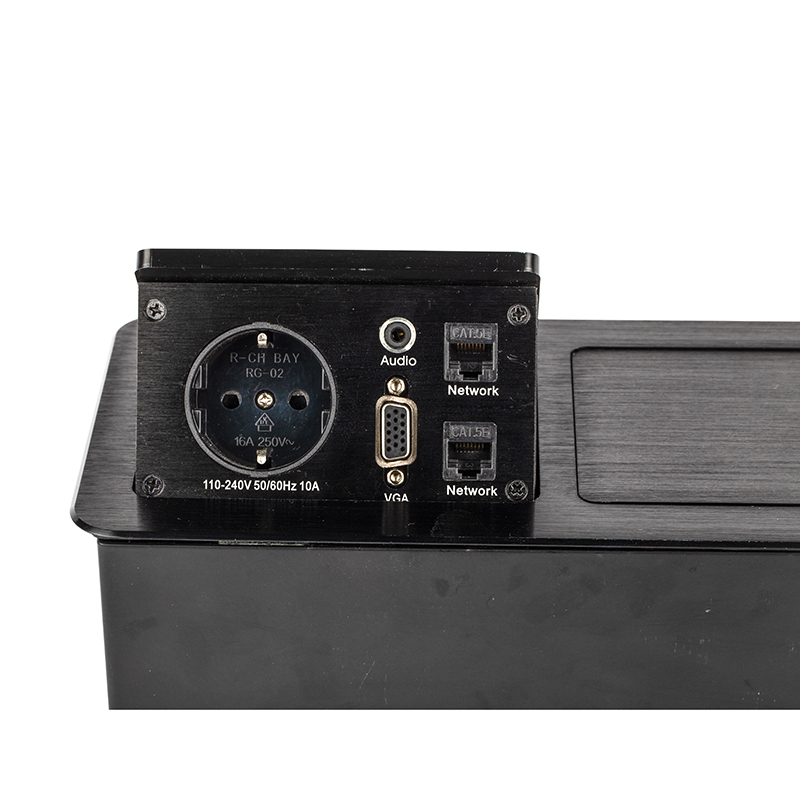

When using just light socket at the top of the panel, release mechanism trunk lock, the socket panel open by pneumatic rod device. After using, light to close the trunk lock, press the socket panel on the front panel of each function module interfaces with hidden, closing the socket after maintain flush with the desktop.
1. Press to reveal or hide all the modules.
2. When closed, the hidden tabletop socket flushes with the desktop.
3. Available in black / silver finish.
4. Modules can be free combined.
Model | P-266/BK | P-266/S |
Surface color | Black | Silver |
Panel Material | Aluminum alloy | |
Box Material | Steel | |
Panel size | 266×130mm | |
Height | 148mm | |
Cutout | 258×122mm | |
Frequency | 50Hz-60Hz | |
Grounding | Standard Grounding | |
Voltage | 110-250V | |
Rated Current | 10-16A/According to different countries |
