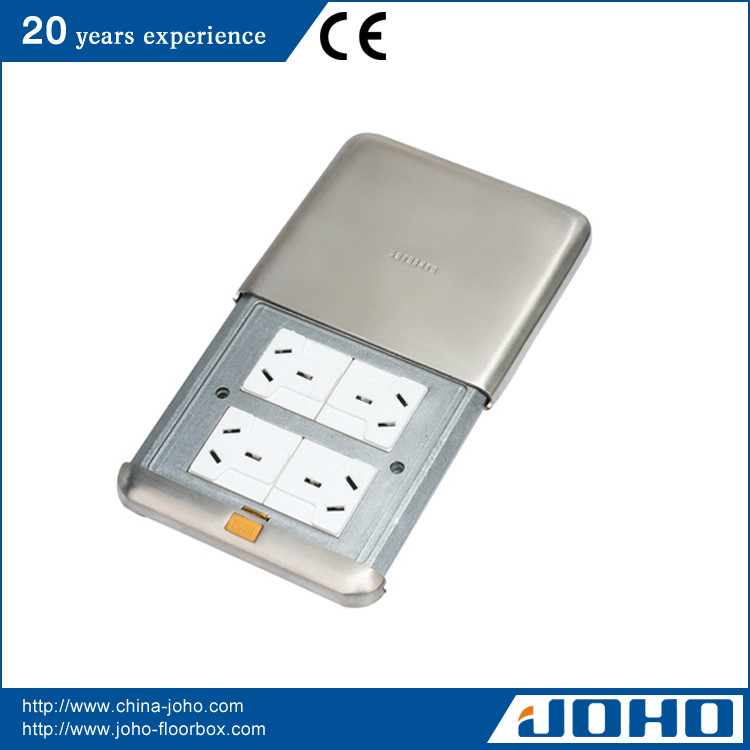

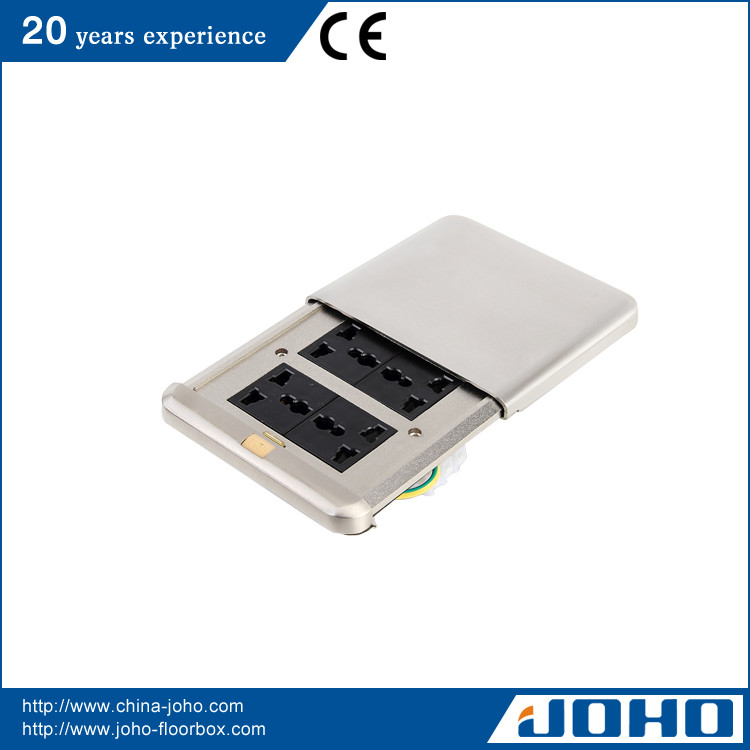

DHM-628/PNU Slip type square stainless steel floor socket

Features:

1. Lightly press the button, the top cover automatically pushes and spring forward. When using, the open cover will not cause tripping over and will eliminate the accident hidden trouble.

2. Slip type square stainless steel floor socket Adopt 118 series function component for installing 4 way 3 pin multi-functional and 3 way computer module.

3. Bottom weak electricity end adopts stainless steel cover screen. Strong and weak electricity are installed together will be more ideal.

4. Slip type square stainless steel floor socket Covers options include: brass and stainless steel.

Basic Parameter:

Panel Dimension: 125*125mm

Panel Material: Stainless steel

Finishing: Wire drawing / Polishing / Spray painting

Interface size: 4 / 6 Modules

Base box material: Steel + Zinc plated

Country of Origin: Made in china – Zhejiang province

For special requirements & OEM /ODM service, please consult us.

Available sockets:

Power socket:

Such as 3 pin socket universal socket 10A 250V, 2 pin socket 10A 250V,

Weak data:

Computer Cat 5E, Cat 6, Telephone, TV, Audio Video

Junction Box

T100-55 Ga-steel box body: 100*100*55mm

T100-80 Ga-steel box body: 100*100*80mm

Application: Wooden floor, Ceramic floor, Marble floor, Carpet floor, Concrete floor and so on.
